  • AVLAB Dual Port Serial PCIe Card with fan-out cable, DB9 RS-232, 921Kbps, Dual Profile Bracket

■ Designed to add two 9-pin RS-232 serial ports to PCIe enabled desktop computers
■ Two high-speed serial ports supporting asynchronous baud rates of up to 921.6Kb/s
■ Built-in 128-byte buffers dramatically increase data transfer rates especially under Windows multi-tasking environment
■ Works as either a standard RS-232 port or with a 5V/12V power output for devices that require power such as handheld scanners, table scanners, POS displays and many more
■ Dual profile works in any available PCI Express slots of different lane widths

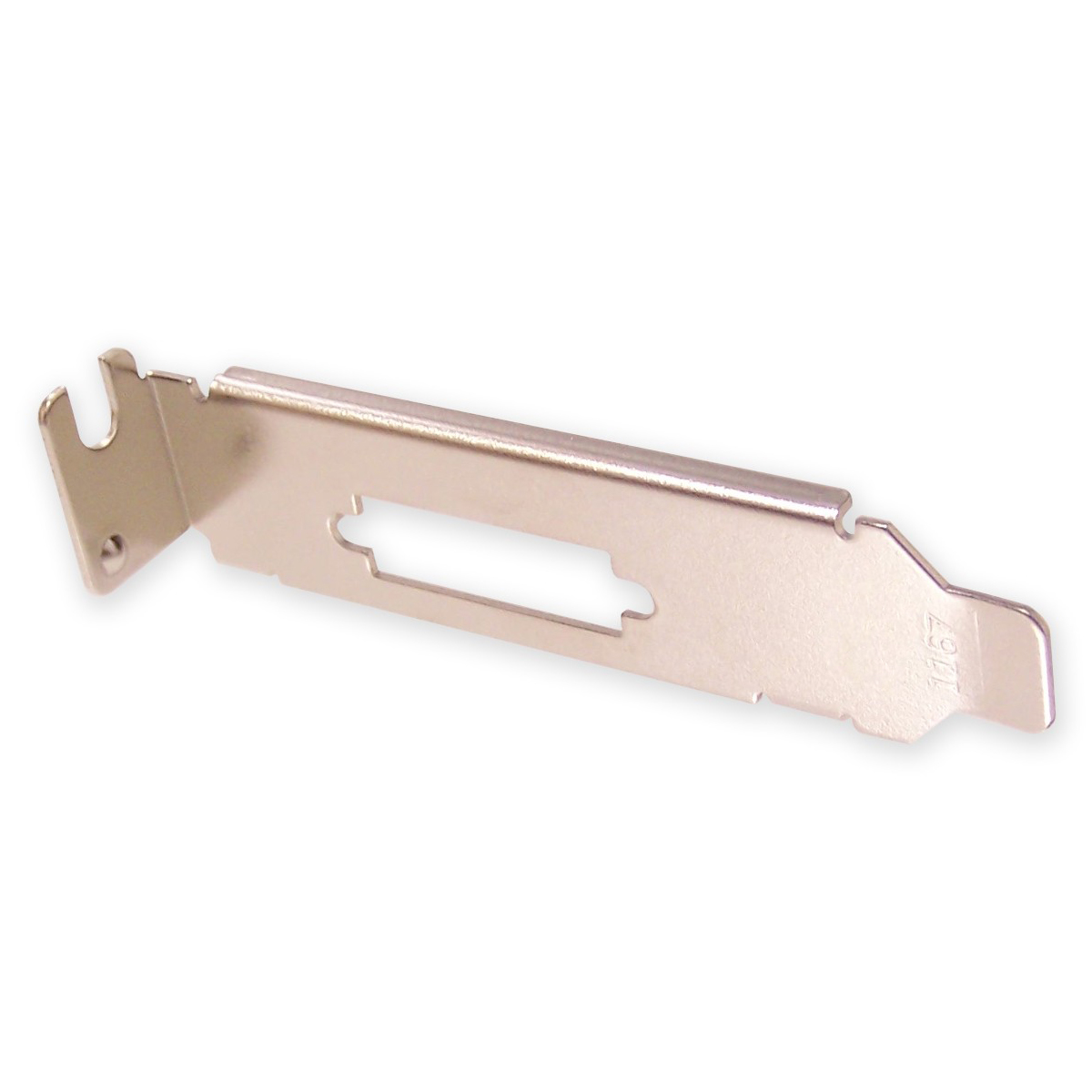

■ Installs in standard height or low profile chassis with included low profile bracket

  • $0 $0

Highlights

EXPANSION
Designed to add two 9-pin RS-232 serial ports to PCIe enabled desktop computers

HIGH SPEED DATA
Two high-speed serial ports supporting asynchronous baud rates of up to 921.6Kb/s

128-BYTE BUFFERS
Built-in 128-byte buffers dramatically increase data transfer rates especially under Windows multi-tasking environment

WORKS WITH A STANDARD RS-232 PORT OR WITH A 5V/12V POWER OUTPUT
Works as either a standard RS-232 port or with a 5V/12V power output for devices that require power such as handheld scanners, table scanners, POS displays and many more

FULL HEIGHT AND LOW PROFILE SUPPORT
Installs in full height and low profile chassis with included brackets

Specification

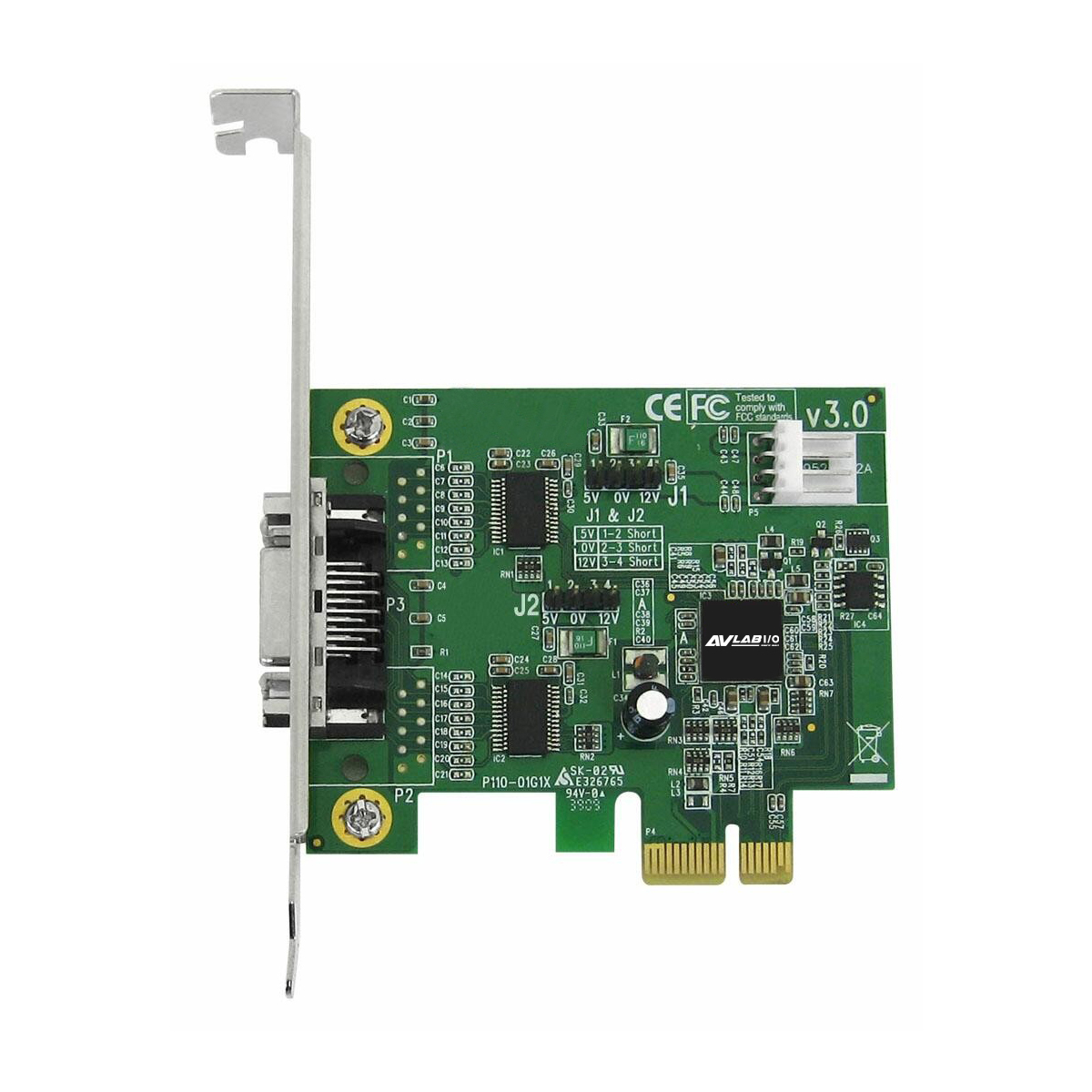

Chipset: Oxford OxPCIe952

Bus type: PCI Express x1

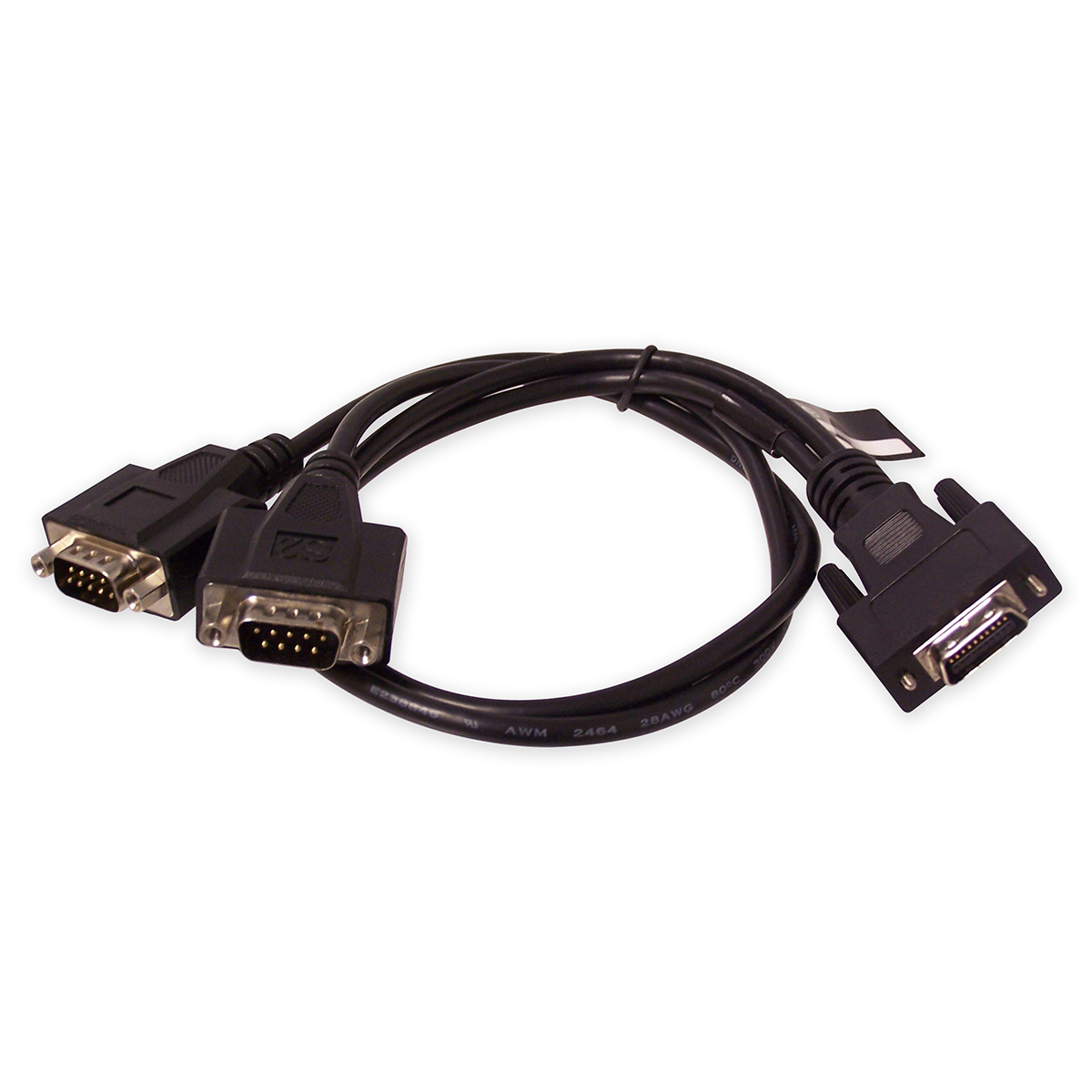

Port type: Two 9-pin RS-232 serial ports (via fan-out cable)

Compliant with PCI Express Base Specification, Revision 1.1

Built-in 128-byte FIFO buffers dramatically increase data transmit/receive speed, especially under Windows multitasking environment

Asynchronous baud rates up to 921.6Kbps

4-layer PCB board:
 separate layers for data & grounding. Greatly reduces signal noise and loss. Delivers more reliable high-speed data transfers

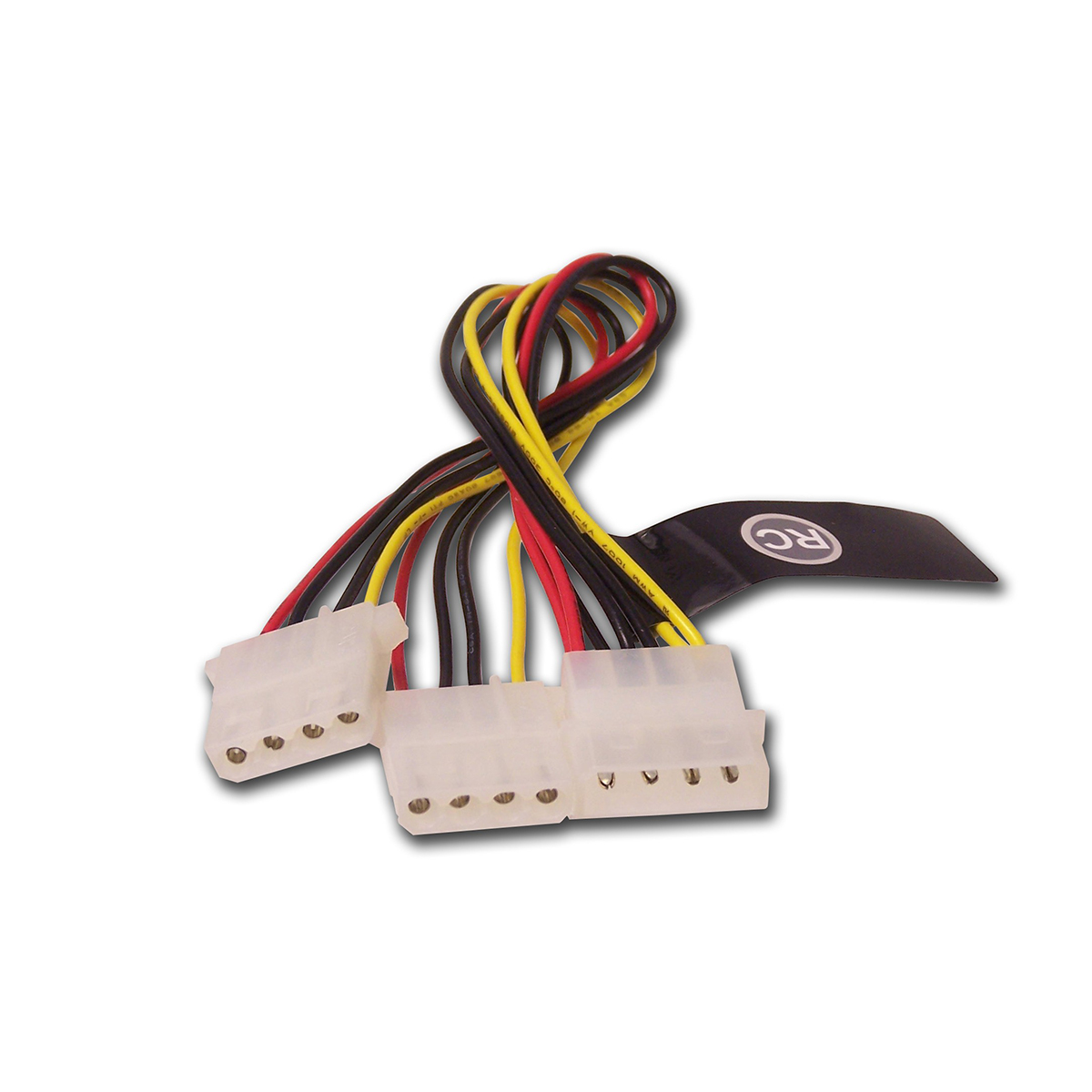

Onboard power connector to provide reliable power source for devices that require power

On board power connector to provide reliable power source for devices that require power

Environmental conditions
■  Operating temperature: 32 to 122 degrees F (0 to 50 degrees C)
■  Operating humidity: 20% to 80% RH
■  Storage temperature: -4 to 140 degrees F (-20 to 60 degrees C)
■  Storage humidity: 10% to 90% RH

Certifications/Standards: FCC, CE, RoHS

Warranty: 1 years limited

Country of origin: China

FAQ

  • How do I confirm that Windows detects my expansion card?
  • To confirm that Windows detects your expansion card, complete the following:
    Press the Windows key+R, type devmgmt.msc, and press Enter.
    In Device Manager, under the appropriate heading, confirm that your expansion card is listed and that there isn't an exclamation mark next to it. For example, a RS-422/485 controller card would be under Ports (COM & LPT)
  • How do I confirm that Windows detects my USB device?
  • To confirm that Windows detects your USB device, complete the following:
    Press the Windows key+R, type devmgmt.msc, and press Enter.
    In Device Manager, under the appropriate heading, confirm that your expansion card is listed and that there isn't an exclamation mark next to it. For example, a USB device would be under Universal Serial Bus controllers.
  • How can I make sure my serial port is working in Windows?
  • To check whether or not an RS-232 serial port is working, perform an RS-232 loopback test by doing the following:

    If your serial port is not female, convert it by taking a female/female cable or gender changer and plugging it into the serial port.

    Take a metal paperclip or wire and cross pins 2 and 3. If you look closely at the female end, the pins should be numbered.

    Open a telnet session on the COM port number of the device that you are testing.

    Note: To open a telnet session on the COM port, you need a telnet client like PuTTY or Hyper Terminal. Windows XP comes with Hyper Terminal.

    When the session is open, anything you type into it you should see. The loopback test fails when you cannot see what you are typing.

    If the loopback test fails, make sure that the serial cable or gender changer that you are using works and that the adapter is in the correct port.
