• AVLAB-IC01-1

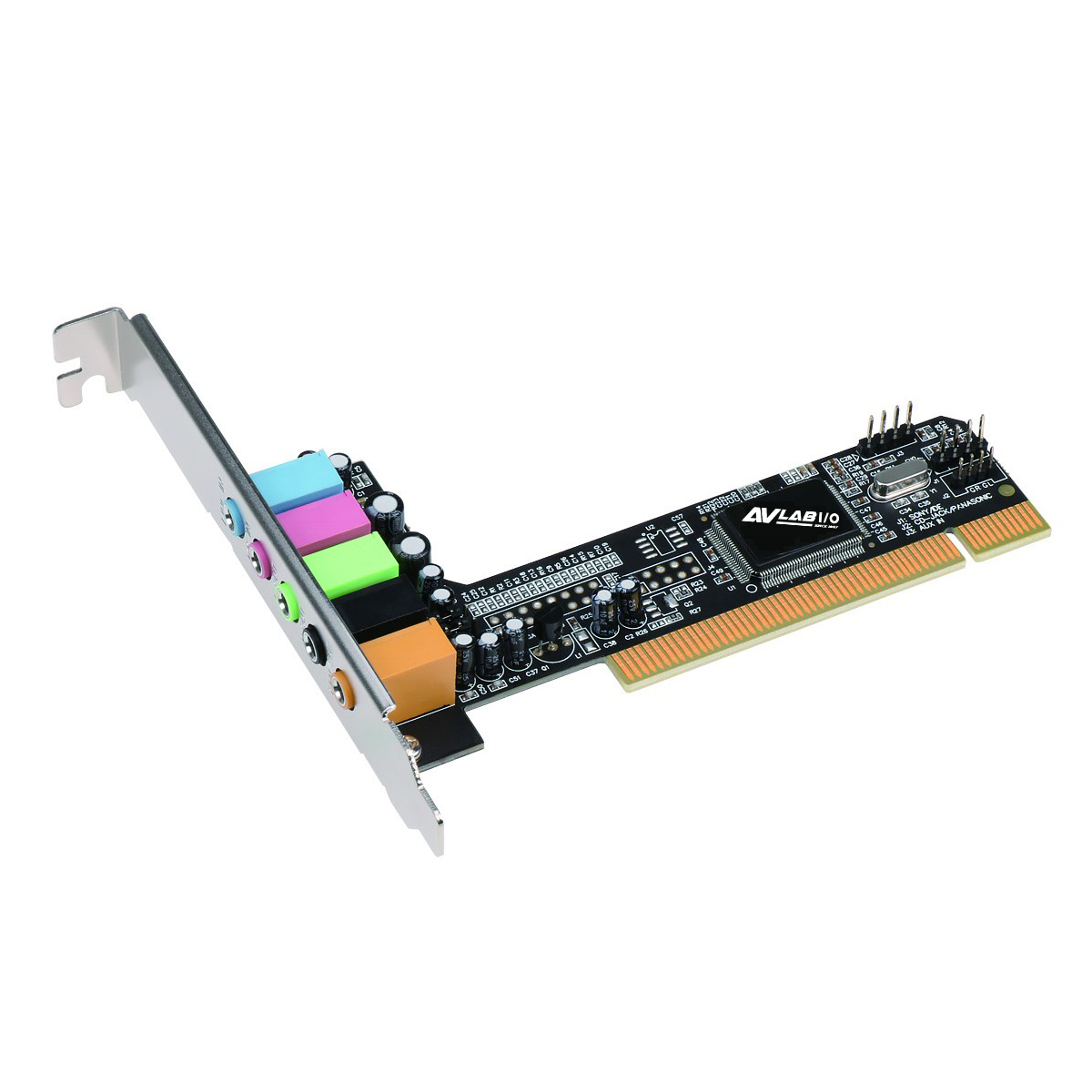

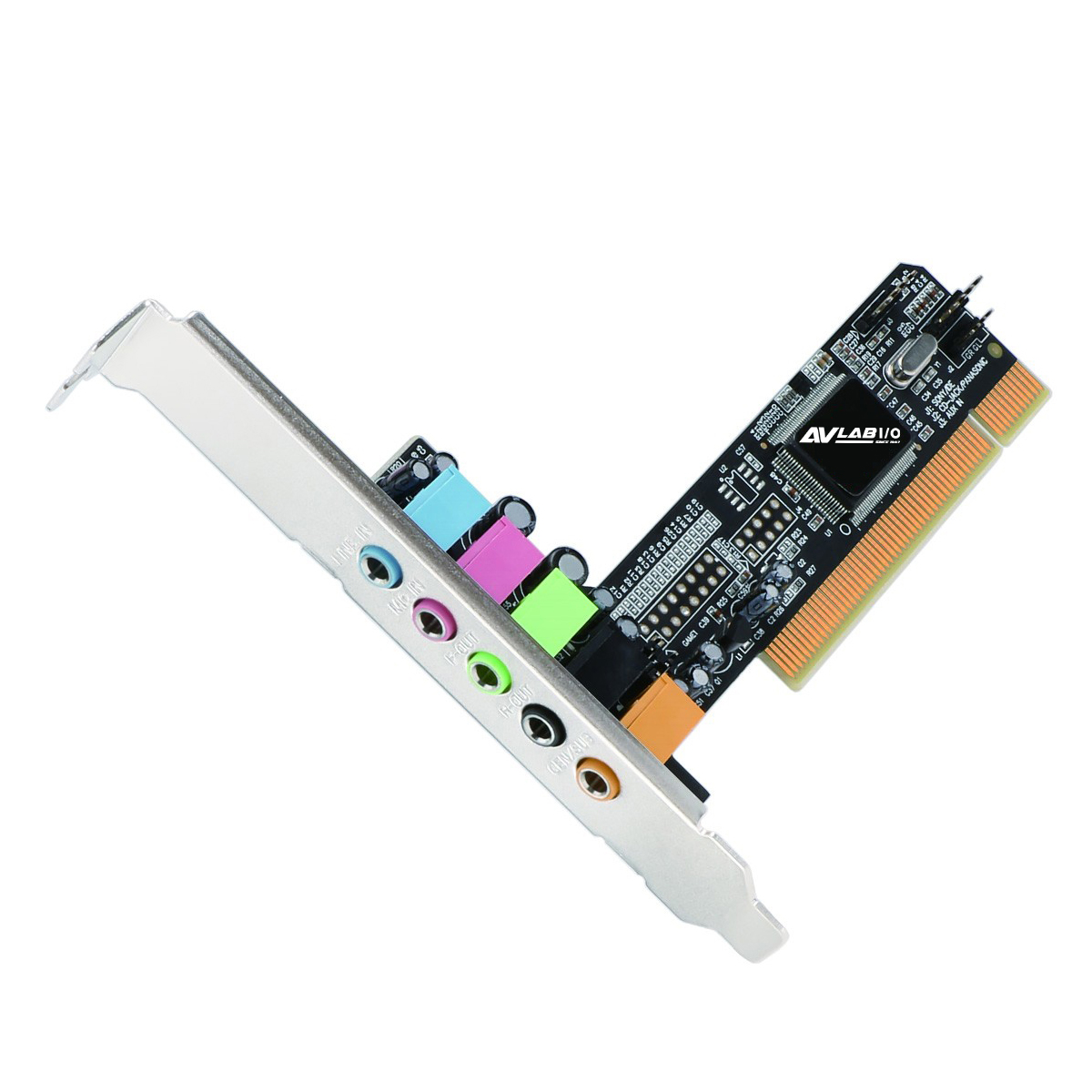

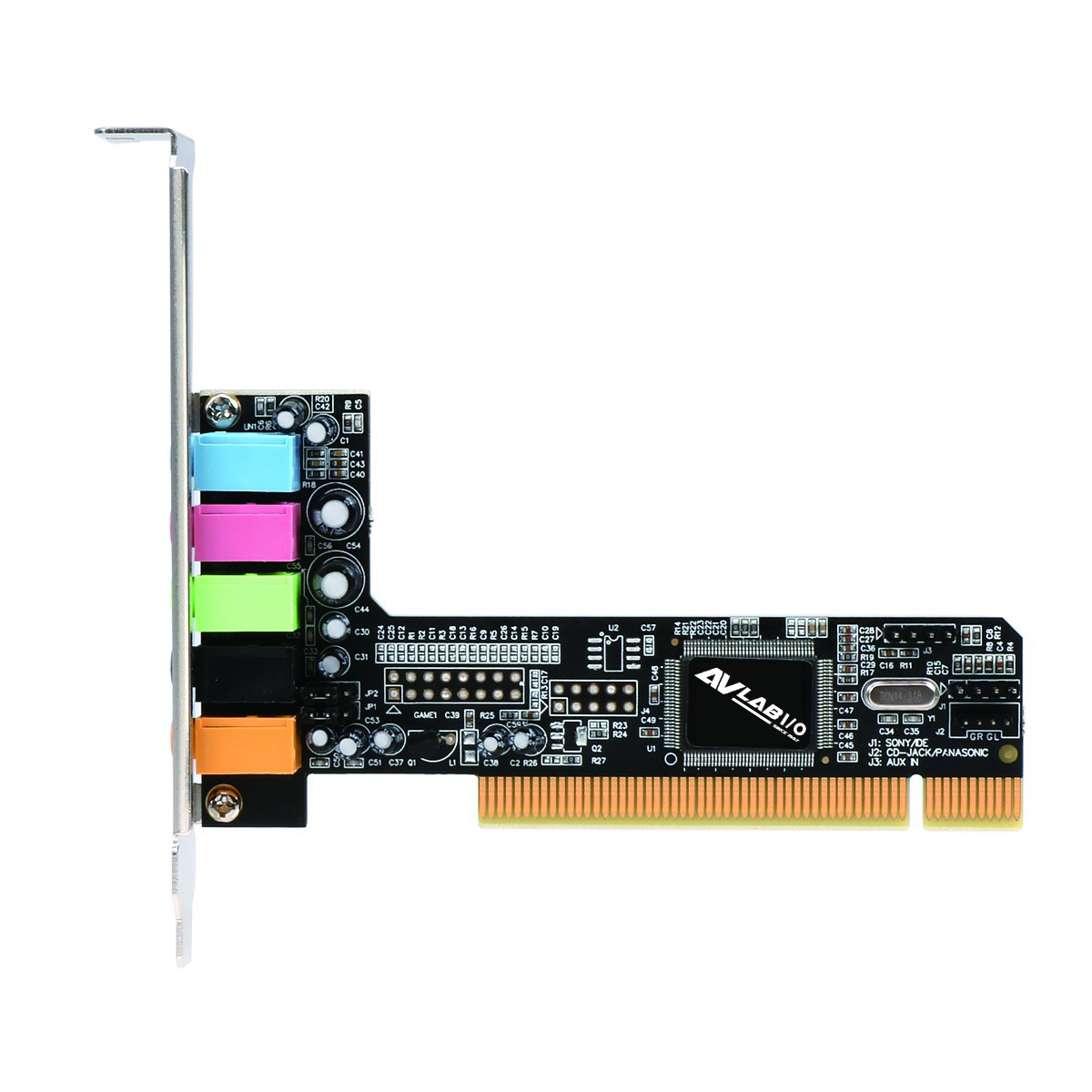

  • AVLAB Sound 5.1 PCI Card, Stereo, Surround

■ Transforms your PC into a home theater system with multi-channel surround sound
■ Experience the latest in digital 5.1-channel surround sound for the latest DVD's, games, and music
■ Customize internet audio with the power and surround sound of EAX audio technologies
■ Fully compliant with Sound Blaster, Sound Blaster Pro and DirectSound

  • $0 $0

Highlights

Transforms your PC into a home theater system
with multi-channel surround sound

Experience the latest in digital 5.1-channel surround sound
for the latest DVD's, games, and music

Customize internet audio
with the power and surround sound of EAX audio technologies

Fully compliant with Sound Blaster
, Sound Blaster Pro and DirectSound

Includes AVLT-Power’s excellent customer service
, 30 day no-questions asked returns, and 1 Year Warranty



Specification

Chipset: CMedia CMI8738


Conforms to PCI specification, revision 2.2 and PC99 specification


Supports multi-channel music, games and DVDs on 2, 4, 6 (5.1) speaker systems


6CH DAC for AC3 5.1-channel purpose


HRTF-based 3D positional audio, DirectSound 3D and A3D to support the latest 3D positional audio


DLS-based wavetable musicsynthesizer, supports DirectMusic


16-bit full duplex CODEC DLS-based wavetable music synthesizer,support DirectMusic


Fully compliant with Sound Blaster, Sound Blaster Pro and DirectSound and supports EAX, karaoke key, echo... sound effects


Frequency Response: 20Hz to 20KHz


S/N Ratio: 68.5dB


Crosstalk: -65.7dB


THD (%): 0.092


THD + Noise: 0.124dB


Dimensions: 5.25" (W) x 4.72" (H) x 0.79" (D)


Weight: 0.12 lbs


Interfaces/Ports:
■ Input: Line In, Microphone In
■ Output: Front Out, Rear Out, Center/Sub Out
■ CD In (internal)
■ Aux In (internal)


Environmental conditions:
■ Operating temperature: 32 to 122 degrees F (0 to 50 degrees C)
■ Operating humidity: 20% to 80% RH
■ Storage temperature: -4 to 140 degrees F (-20 to 60 degrees C)
■ Storage humidity: 10% to 90% RH


Certifications/Standards: FCC, CE, RoHS


Warranty: 1 years limited


Country of origin: China


Requirements
■ Desktop PC with an available PCI slot
■ Windows® 8.1 (32-/64-bit) / 8 (32-/64-bit) / 7 (32-/64-bit) / Vista (32-/64-bit) /

XP (32-bit) / Server 2003 & 2008 (32-/64-bit) / Server 2008 R2 / 2000


Package Contents
■ SoundWave 5.1 PCI sound card
■ Driver CD
■ Installation guide

FAQ

  • Q: How do I confirm that Windows detects my expansion card?
  • To confirm that Windows detects your USB device, complete the following:
    Press the Windows key+R, type devmgmt.msc, and press Enter.
    In Device Manager, under the appropriate heading, confirm that your expansion card is listed and that there isn't an exclamation mark next to it.
  • Q: Why is my 5.1 or 7.1 surround sound not working from the digital (S/PDIF) output?
  • The audio format of your source media may be uncompressed (lossless). Uncompressed surround sound audio is not supported by digital (S/PDIF) connections due to bandwidth limitations. When your lossless 5.1 or 7.1 audio content is sent through the Digital S/PDIF connection, data will be lost which can result in limited 2-channel audio playback.

    This issue is not an isolated limitation of this audio adapter, as uncompressed surround sound is universally incompatible with digital (S/PDIF) audio.

    Digital (S/PDIF) audio supports:
    ■ 2-channel PCM audio
    ■ Compressed surround sound audio (Dolby Digital, DD+, DTS, DTS-ES)

    Digital (S/PDIF) audio does NOT support:
    ■ More than 2-channels of PCM audio
    ■ Uncompressed surround sound audio (DD-TrueHD, DTS-Master Audio)

    Playback of digital surround sound is dependent on a variety of factors, including the audio format of your source media, your playback software, and your audio receiver. Digital (S/PDIF) channel settings are managed by the source and playback devices, and cannot be manually configured like analog audio
  • Q: Does these sound card support Windows 10?
  • Unfortunately, it is not compatible in Windows 10. It is not supported.
