- new | AVLAB-CB77
- USB 3.0 to DVI/VGA Pro adapter, 1080p, USB 3.0 5 Gbps, included DVI to VGA adapter
- $89.99
Highlights
-
- Expand Computer's Display Capabilities - External graphics card solution for multiple display modes that are not available with standard DVI/VGA adapters
- SuperSpeed USB 3.0 Interface -Leveraging the USB 3.0 5Gbps high band-width data transfer rate to delivers smooth, high definition content to external monitors, and backwards compatible with USB 2.0 specification

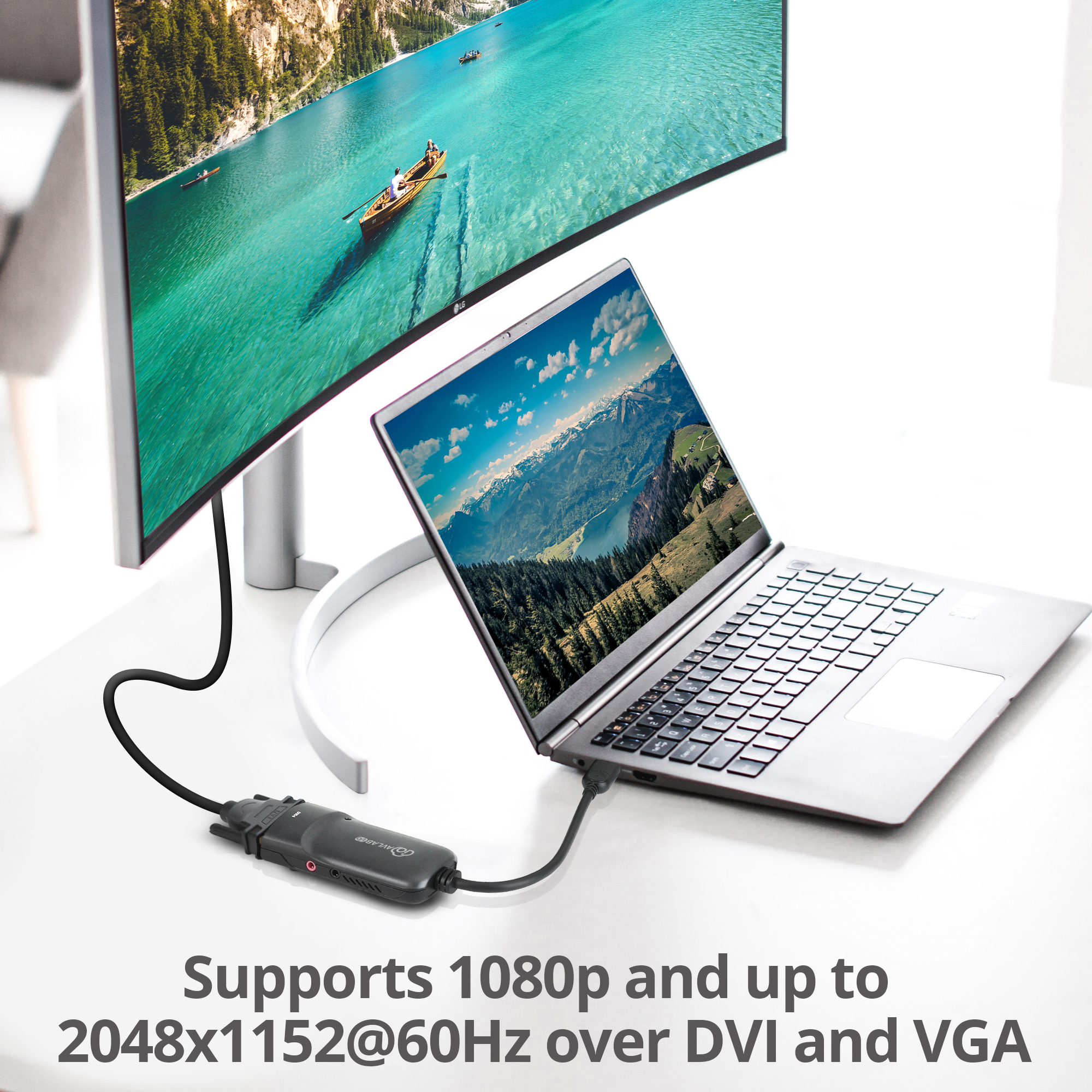

- High Resolution - Supports resolution up to 1920x1080p (Full HD) and 2048x1152 (16:9), and stereo audio and MIC via 3.5mm phone jack

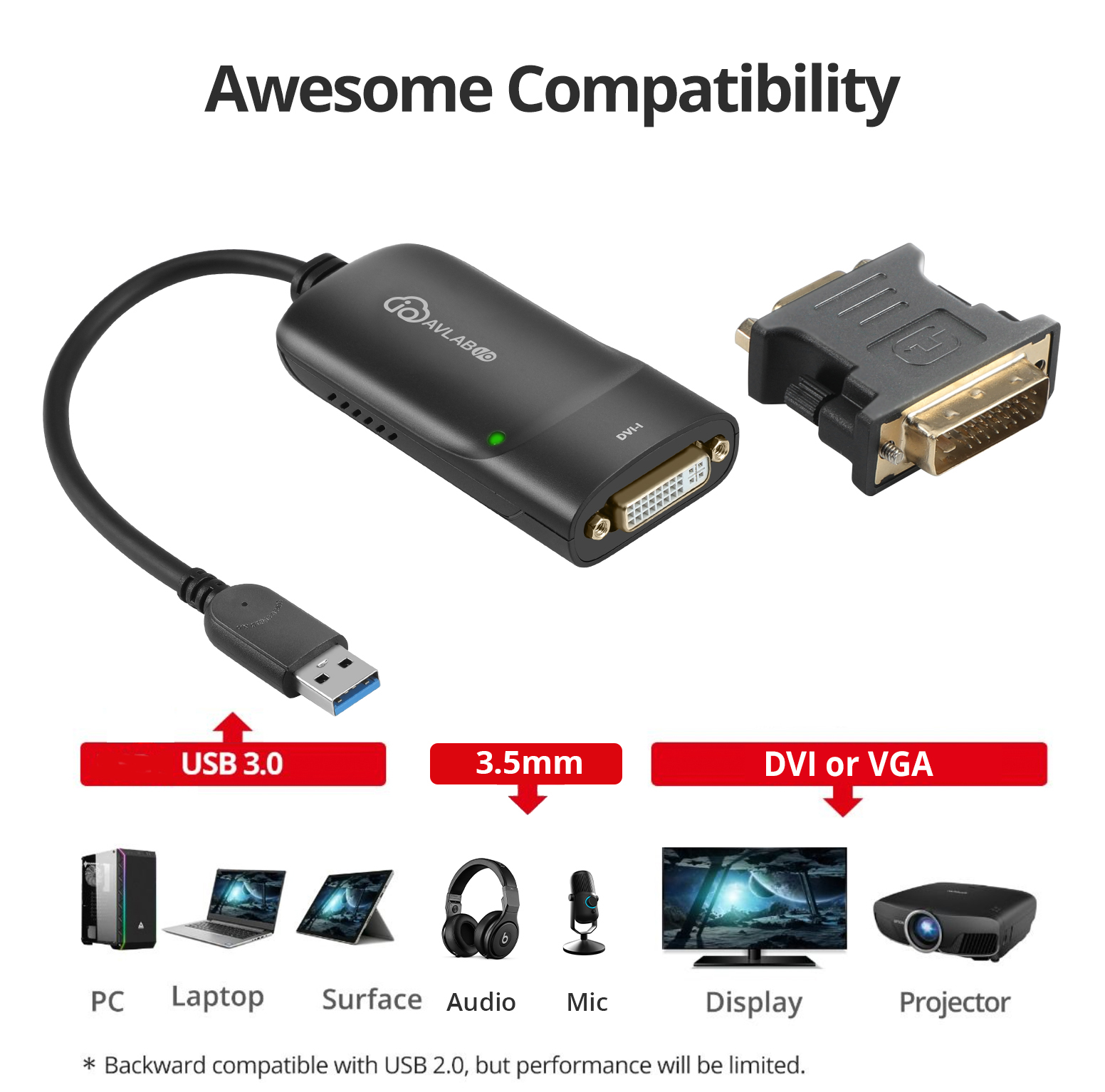

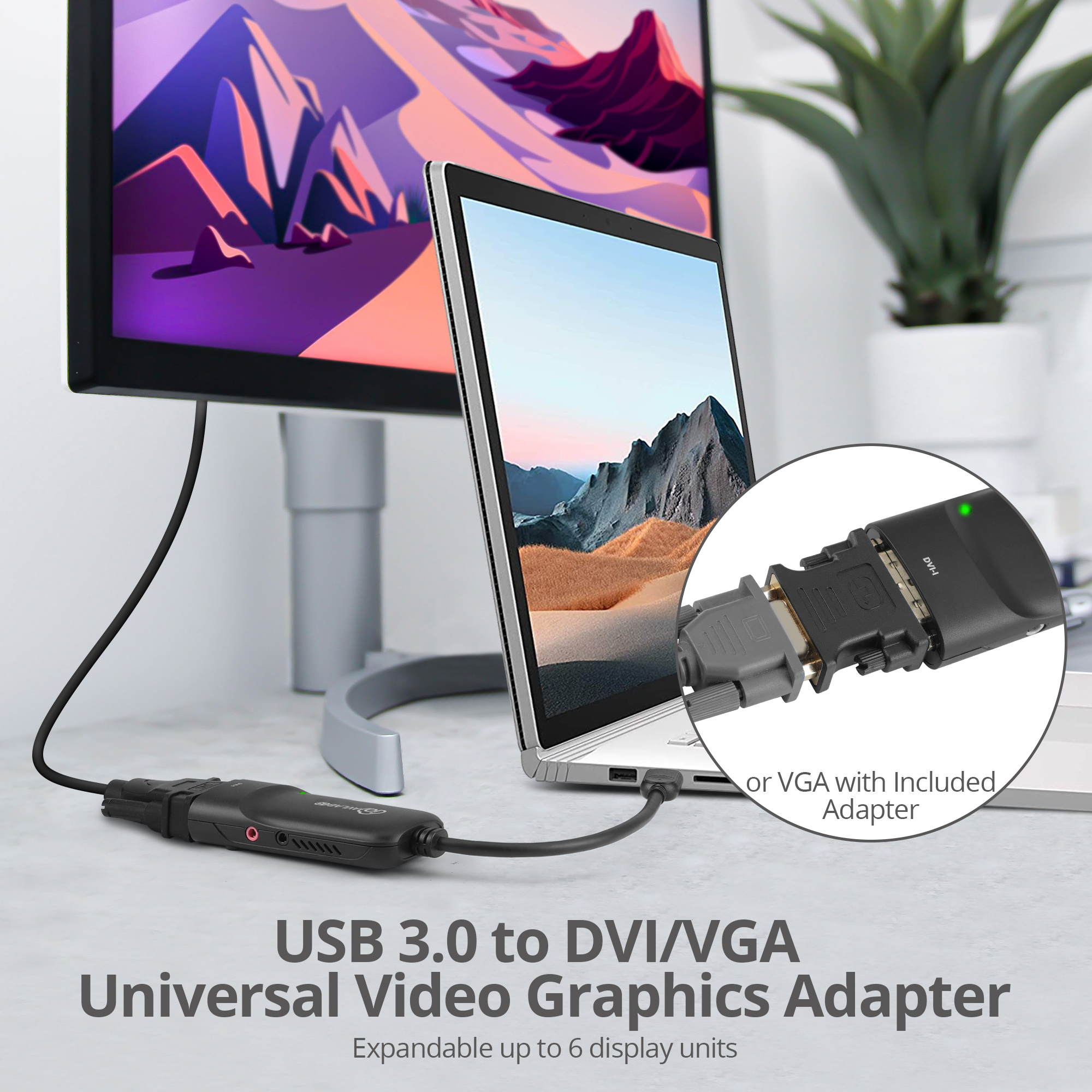

- DVI to VGA adapter Included - You can connects to either DVI or VGA displays with the included adapter according to the working environment
- Easy Installation - Quick and easy installation with no external power adapter required; Hot-pluggable and USB bus powered
- DisplayLink Manager Supported - This adapter allows you to take advantage of multiple screens. It is capable of maximum connection to 6 adapters per system
Specification
- Chipset: DisplayLink DL-3500-N
- USB data transfer rate: Up to 5Gbps
- Connects up to 6 adapters per system
- Compliant with USB 3.0 and backwards compatible with USB 2.0 specification
- Compliant with DVI specification v1.0
- Supports Resolution
- DVI: Up to 2048x1152@60Hz & 1920x1080@60Hz
- VGA: Up to 2048x1152@60Hz & 1920x1080@60Hz
- Display modes: Primary, Extend and Mirror
- Audio: 2 Ch stereo
- USB bus powered and hot-pluggable
- Product

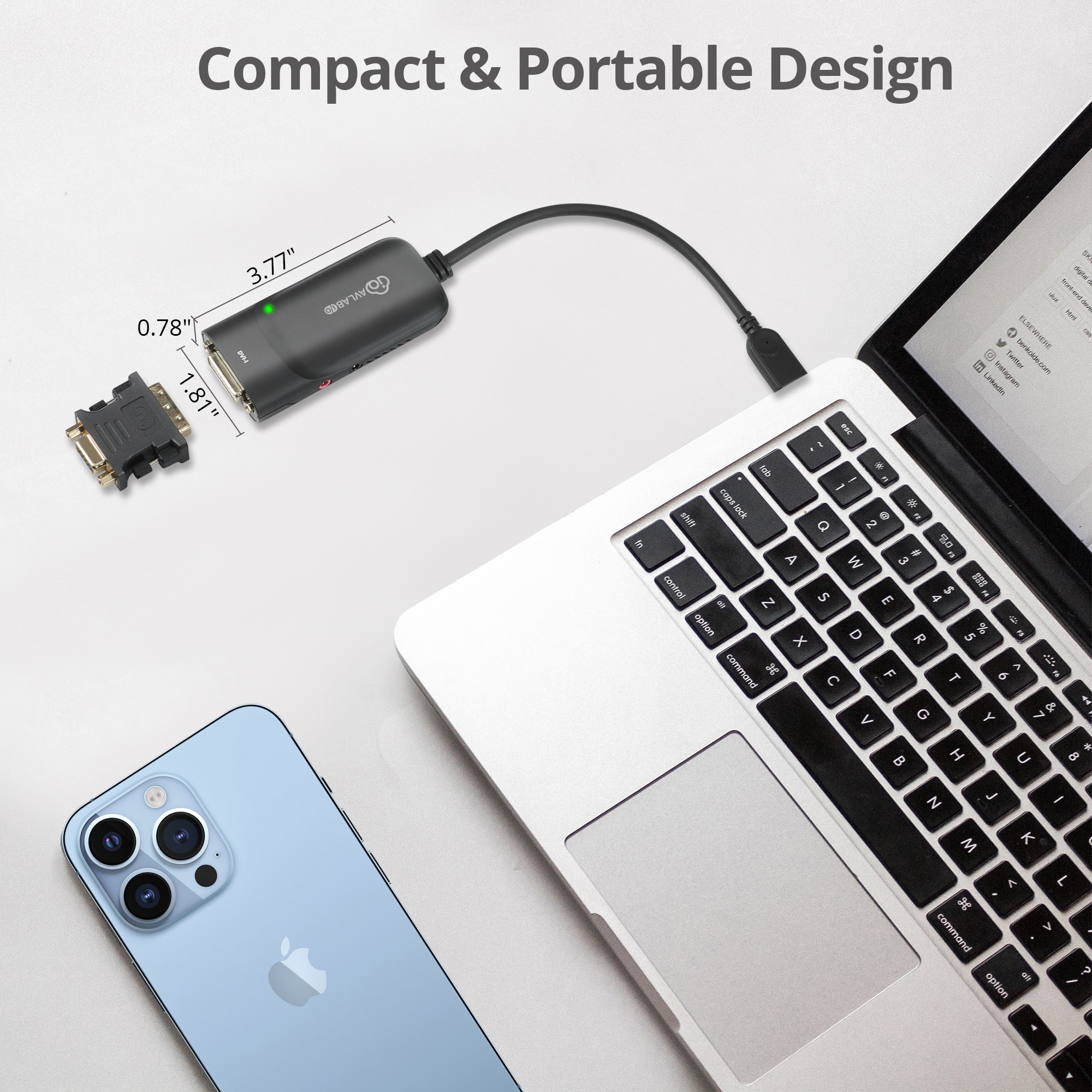

- Dimension: 3.86" (W) x 0.79" (H) x 1.77" (D)
- Weight: 0.14 lbs
- Color: Black
- Housing Material: Plastic
- Connectors:
- 1x 9-pin, USB 3.0, Type A, Male, Input
- 1x 29-pin, DVI-I, Female, Output
- 1x 3.5mm phone jack, stereo audio, output
- 1x 3.5mm phone jack, Microphone, input
- Unit Package:
- Dimensions: 8.15" (W) x 1.93" (H) x 5.39" (D)
- Weight: 0.43 lbs
- Environmental conditions:
- Operating temperature: 50 to 104 degrees F
- Storage temperature: 14 to 158 degrees F
- Relative humidity: <85% RH (non-condensing)
- Certifications/Standards: FCC, CE, RoHS
- Country of origin: Engineered in USA , Manufactured in China
