Displaying products 1-20 of 58

Sort by:

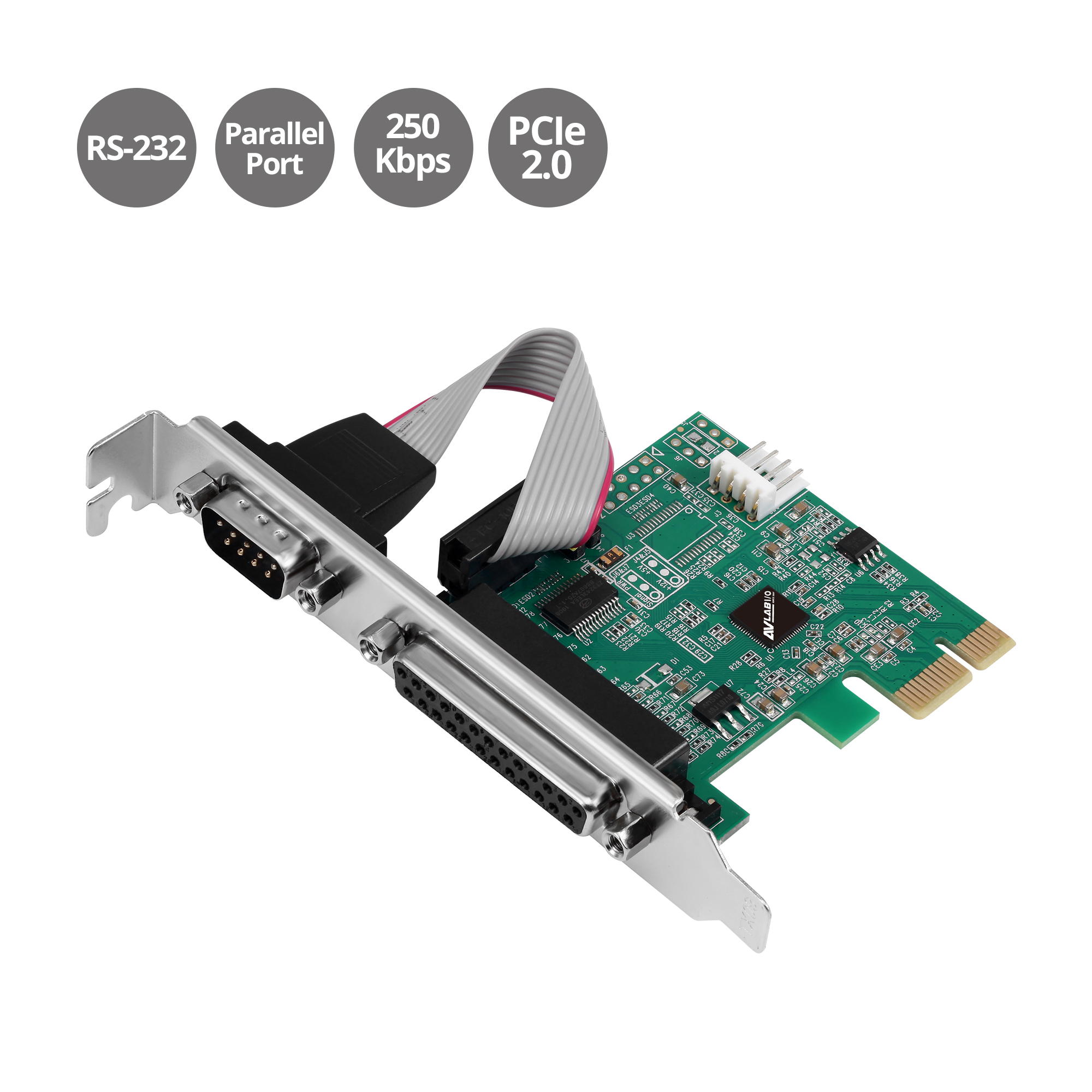

  • AVLAB Dual Profile Cyber 1 Serial 1 Parrelle PCIe Card
  • AVLAB-JJ21-1
  • ■ Easily adds one serial port and one parallel port through an available PCI Express slot
    ■ 16C650 UART serial port with data transfer rate up to 250Kbps
    ■ Compliant with PCI Express 2.0 Gen 1
    ■ Compatible with IEEE 1284 -1994 parallel port standard for SPP/Byte/ECP Mode
    ■ Single-lane (X1) PCI Express end-point controller with PHY integrated
    ■ Full serial modem control
    ■ Hardware and software flow control
    ■ 5, 6, 7, 8 and 9-bit serial format
    ■ Even, odd, none, space and mark parity
    ■ On chip 256 byte FIFO buffers in transmit, receive path
    ■ Works as standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays, etc.), power output configurable via jumpers
    ■ Supports PCI bus Power Management Interface Specification Revision 1.2
    ■ Dual-profile design fits full height and low-profile system chassis with the included spare low-profile brackets
    ■ Perfect solution to connect with POS systems, industrial testing and control devices, security systems, logistic management equipment, printers, scanners, etc.
  • AVLAB Dual Profile Cyber 2 Serial 1 Parrelle PCIe Card
  • AVLAB-JJ22-1
  • ■ Easily adds two serial port and one parallel port through an available PCI Express slot
    ■ 16C650 UART serial port with data transfer rate up to 250Kbps
    ■ Compliant with PCI Express 2.0 Gen 1
    ■ Compatible with IEEE 1284 -1994 parallel port standard for SPP/Byte/ECP Mode
    ■ Single-lane (X1) PCI Express end-point controller with PHY integrated
    ■ Full serial modem control
    ■ Hardware and software flow control
    ■ 5, 6, 7, 8 and 9-bit serial format
    ■ Even, odd, none, space and mark parity
    ■ On chip 256 byte FIFO buffers in transmit, receive path
    ■ Works as standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays, etc.), power output configurable via jumpers
    ■ Complies with PCI bus Power Management Interface Specification Revision 1.2
    ■ Dual-profile design fits full height and low-profile system chassis with the included spare low-profile brackets
    ■ Perfect solution to connect with POS systems, industrial testing and control devices, security systems, logistic management equipment, printers, scanners, etc.

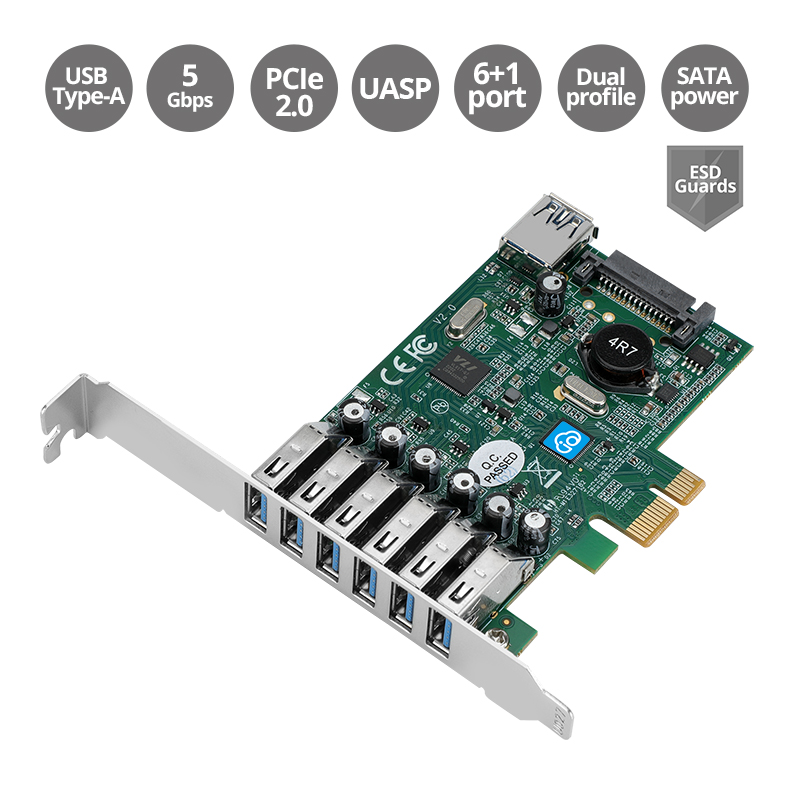

  • AVLAB Dual Profile USB 3.0 7-Port PCIe i/e
  • new|AVLAB-US32-1
  • ■ Adds seven SuperSpeed USB 3.0 5Gbps Type-A ports, 6 external and one internal, to your desktop system
    ■ Industry recognized high performance Renesas uPD720201/uPD720210 chipset
    ■ Supports the following speed data rates: Low-speed (1.5 Mbps) / Full-speed (12Mbps) / High-speed (480 Mbps) / Super-speed (5 Gbps)
    ■ Complies with PCIe 2.0 standard
    ■ Compliant with Intel’s eXtensible Host Controller Interface (xHCI) Specification Revision 1.0
    ■ Supports USB legacy function and UASP mode (UASP supports Windows 10 and 8 embedded drivers only)
    ■ Supports PCI Bus Power Management Interface Specification Revision 1.2
    ■ Dual-profile bracket included (full & low profile) designed to fit multiple system form factors with included brackets
    ■ Each USB port features independent over-current protection to further protect your connected devices and the PCIe board itself from unforeseen power spikes
    Hardware Installaton Note:
    SATA power connection is required
  • AVLAB 4-Port SuperSpeed USB 3.0 PCIe Card - Quad Core
  • new|AVLAB-US35-1
  • ■ Features four independent SuperSpeed USB 3.0 Type-A ports delivering up to 5Gbps data transfer per port for a total USB bandwidth of up to 20Gbps
    ■ Industry recognized high performance Renesas uPD720202 chipset
    ■ Supports the following speed data rate as follows: Low-speed (1.5 Mbps) / Full-speed (12Mbps) / High-speed (480 Mbps) / Super-speed (5Gbps)
    ■ Compliant with Intel’s eXtensible Host Controller Interface (xHCI) Specification Revision 1.0
    ■ Compliant with PCIe 2.0 standard
    ■ Supports USB legacy function and UASP mode (UASP requires Windows 10 and 8 embedded drivers only)
    ■ Supports PCI Bus Power Management Interface Specification Revision 1.2
    ■ Low-profile bracket design fits lower size system form factor with included low profile bracket
    ■ Each USB port featured with independent over-current protection to further protect your devices and the board itself from unforeseen power spikes
  • AVLAB 1394b PCIe Card - FireWire 800 3x9-Pin, Dual Profile Bracket
  • new|AVLAB-NN01-1
  • ■ Provides 3 FireWire 800 ports (9-pin) for multiple device connections
    ■ Works with DV camcorders, FireWire hard disks, digital cameras, scanners, CD-RW/DVD drives, video game systems, and other audio/video devices
    ■ Installs in standard height or low profile chassis with included brackets
  • AVLAB 1394a/b PCIe Card - FireWire 400/800, 2x9-Pin, 1x6-Pin, Dual Profile Bracket
  • AVLAB-NN02-1

  • ■ PCI Express 1-lane (x1) FireWire adapter works with PCI Express slots with different lane width
    ■ Installs in any available PCI Express slot and supports data rates up to 800Mbps
    ■ Standard height and low profile brackets are included to work in different chassis form factors
    ■ Works with various FireWire devices including DV camcorder, CD-RW/DVD-ROM, portable hard disk, digital camera, and other audio/video devices
    ■ Works with Sony, Panasonic, Cannon, Sharp, JVC and many other DV camcorders for digital video creating/editing

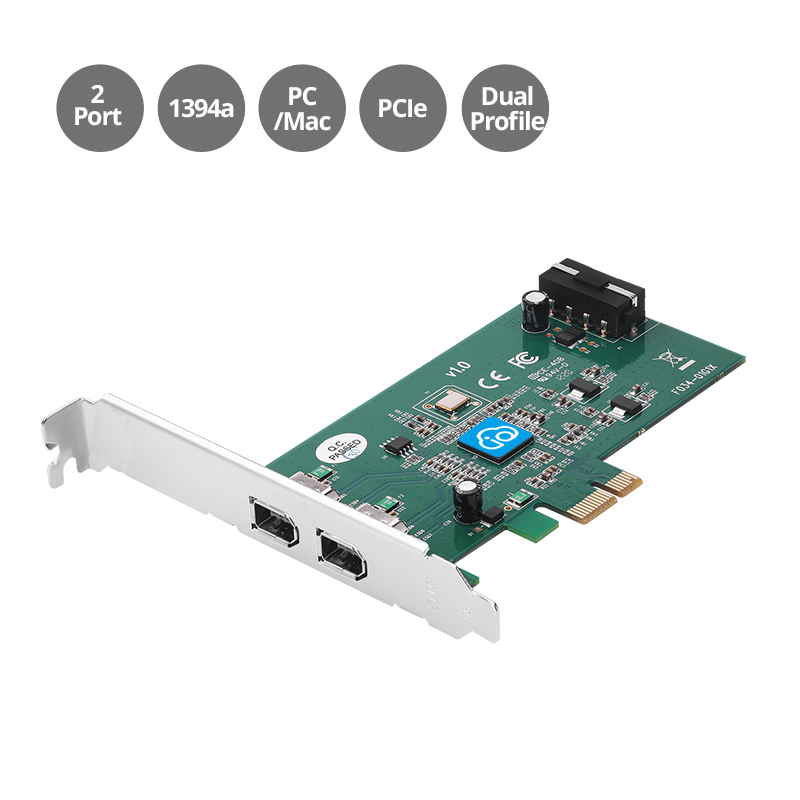

  • AVLAB 1394 2-Port PCIe Card - 2x6-Pin, FireWire 400, Dual Profile Bracket
  • new|AVLAB-NN03-1
  • ■ PCI Express 1-lane (x1) FireWire adapter works with PCI Express slots with different lane width
    ■ Installs in any available PCI Express slot and supports data rates up to 400Mbps
    ■ Standard height and low profile brackets are included to work in different chassis form factors
    ■ Works with FireWire (1394a) devices including DV camcorder, CD-RW/DVD-ROM, portable hard disk, digital camera, and other audio/video devices
    ■ Works with Sony, Panasonic, Cannon, Sharp, JVC and many other DV camcorders for digital video creating/editing
