• AVLAB-NN04-1
  • AVLAB-I/O 2-Port FireWire PCIe Card Dual Profile Brackets

Dual profile PCI Express FireWire 400 adapter works with PCI Express slots of different lane widths

  • $0 $0

Highlights

  • PCI Express 1-lane (x1) FireWire adapter works with PCI Express slots of different lane widths
  • Installs in any available PCI Express slot
  • Supports data rates up to 400Mbps

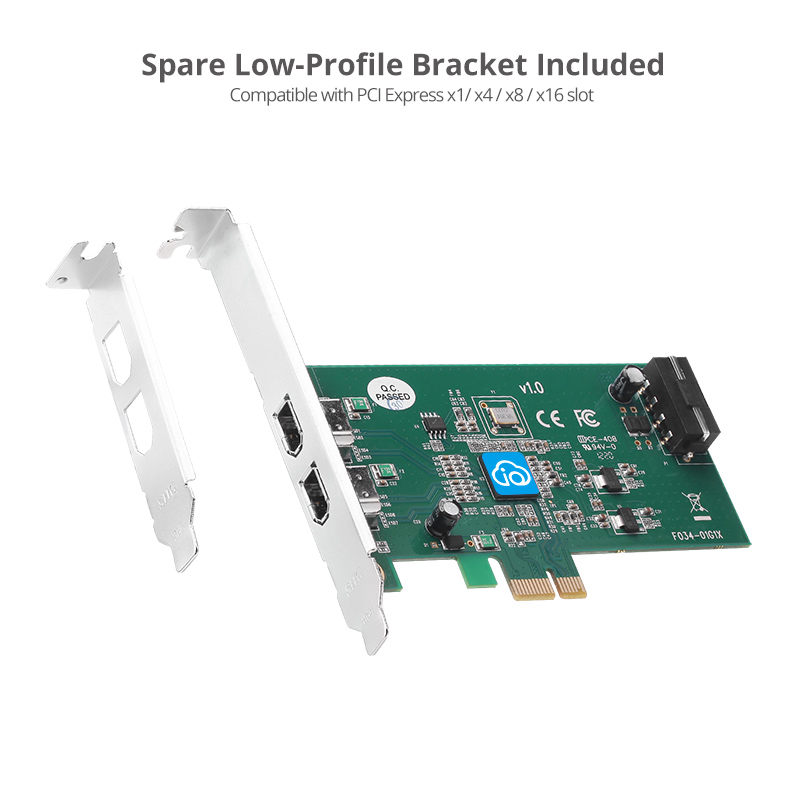

  • The included standard height and low-profile brackets allow the adapter to be installed into either full-height and low-profile system chassis
  • Works with FireWire (1394a) devices including DV camcorders, CD-RW/DVD-ROMs, portable hard disk enclosures, digital cameras, and many other audio/video devices
  • Plug-and-play installation no driver installation is required

Specification

  • Chipset: TI XIO2213BZAY
  • Bus type: PCI Express x1
  • Compliant with PCI Express Base Specification Revision 1.0a
  • Compliant with IEEE 1394-1995, 1394a-2000 and OHCI 1.1 standards
  • Port type:
    • Two, 6-pin, External, FireWire 400 (1394a), Female
  • Power output: 12V/1A (per port), Onboard power connector optional
  • Hot-swapping feature allows you to connect/disconnect devices without powering down the system
  • Supports Firewire serial bus data transfer rates of 100, 200 and 400Mb/sec and supports up to 63 devices
  • Onboard power connector is included to provide reliable power source
  • Product:
    • Dimensions (with full height bracket): 4.72" (L) x 0.83" (H) x 5.28" (W)
    • Weight: 0.12 lbs
    • Color: Green
  • Environmental conditions:
    • Operating temperature: 32 to 122 degrees F
    • Storage temperature: -4 to 140 degrees F
    • Relative humidity: 10 to 90% RH (non-condensing)
  • Certifications/Standards: FCC, CE, RoHS
  • Country of origin: China
