• AVLAB-GE08-1
  • AVLAB-I/O 2-Port 10G SFP+ Ethernet PCIe Card

Add two independent 10GbE SFP Ethernet ports through an available PCI Express x8 slot to server or desktop systems

  • $0 $0

Highlights

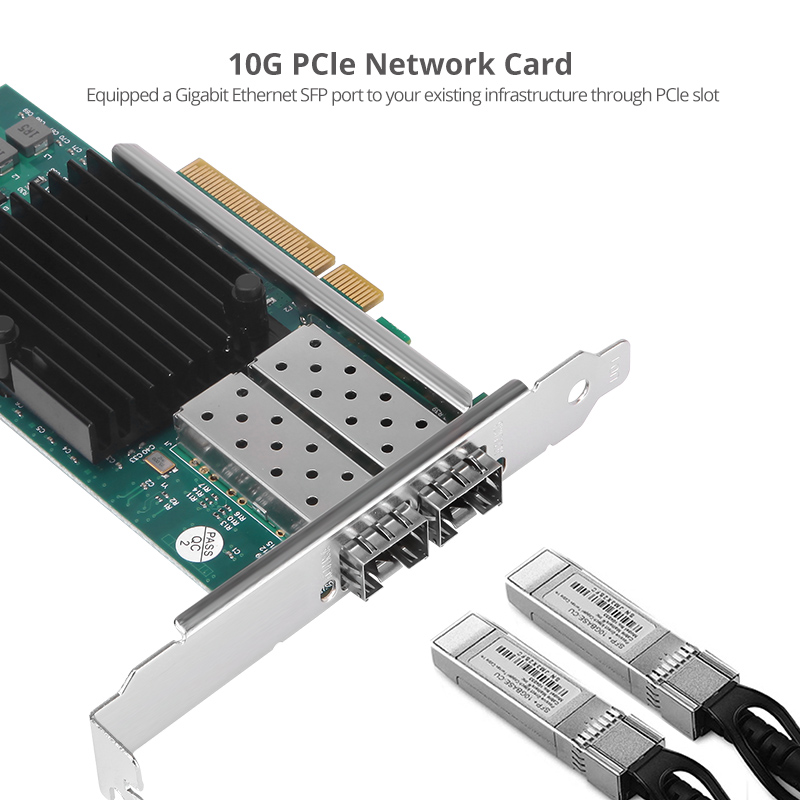

  • Adds two independent 10GbE SFP Ethernet ports through an available PCI Express 2.0 x8 or larger slot to server or desktop systems
  • Intel X520 chipset support reliable and advanced network connectivity with Intel virtualization technology, flexible features of LAN and SAN network with iSCSI, NFS
  • Compliant with IEEE 802.3ae, 802.3x, 802.1Q with full duplex and Wake-on-Lan support
  • Feature innovative power management including Energy Efficient Ethernet(EEE) and DMA
  • Coalescing to increase efficiency and reduce power consumption

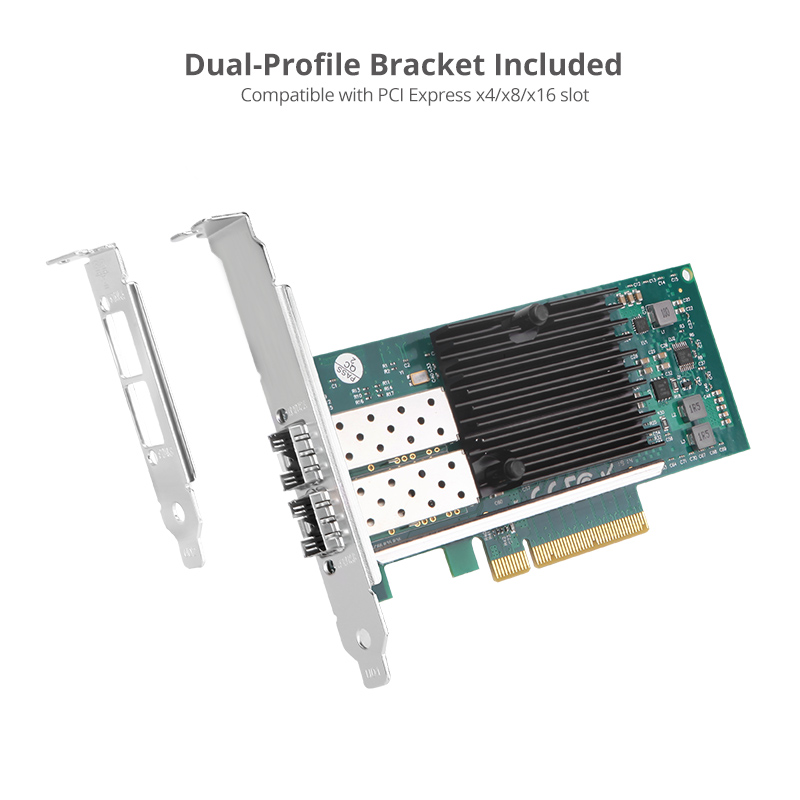

  • Fits both standard and low-profile system chassis with the included brackets
  • Over-size heat-sink provides better heat-dissipation for reliable performance and long life

Specification

  • Chipset: Intel X520
  • Network transfer rate: 10G / 1G / 100Mbps
  • PCI Express 2.0 specification compliant
  • Bus connector: PCI Express x8
  • Product:
      • Connectors: 2x SFP+, Female
      • Dimensions: 5.91" (W) x 0.83" (H) x 4.72" (D)
      • Weight: 0.27 lbs
      • Color: Green
  • Environmental conditions:
      • Operating temperature: 32 to 104 degrees F
      • Storage temperature: 14 to 140 degrees F
      • Relative humidity: 5% to 85% RH (non-condensing)
  • Certifications/Standards: FCC, CE, RoHS
  • Country of origin: China
