- new | AcePro-EX63
- Full HD Wireless HDMI KVM Extender with Loopout, 1080p, up to 500ft (150m), HDMI Loop-out 4K60Hz
- $329.99
Highlights

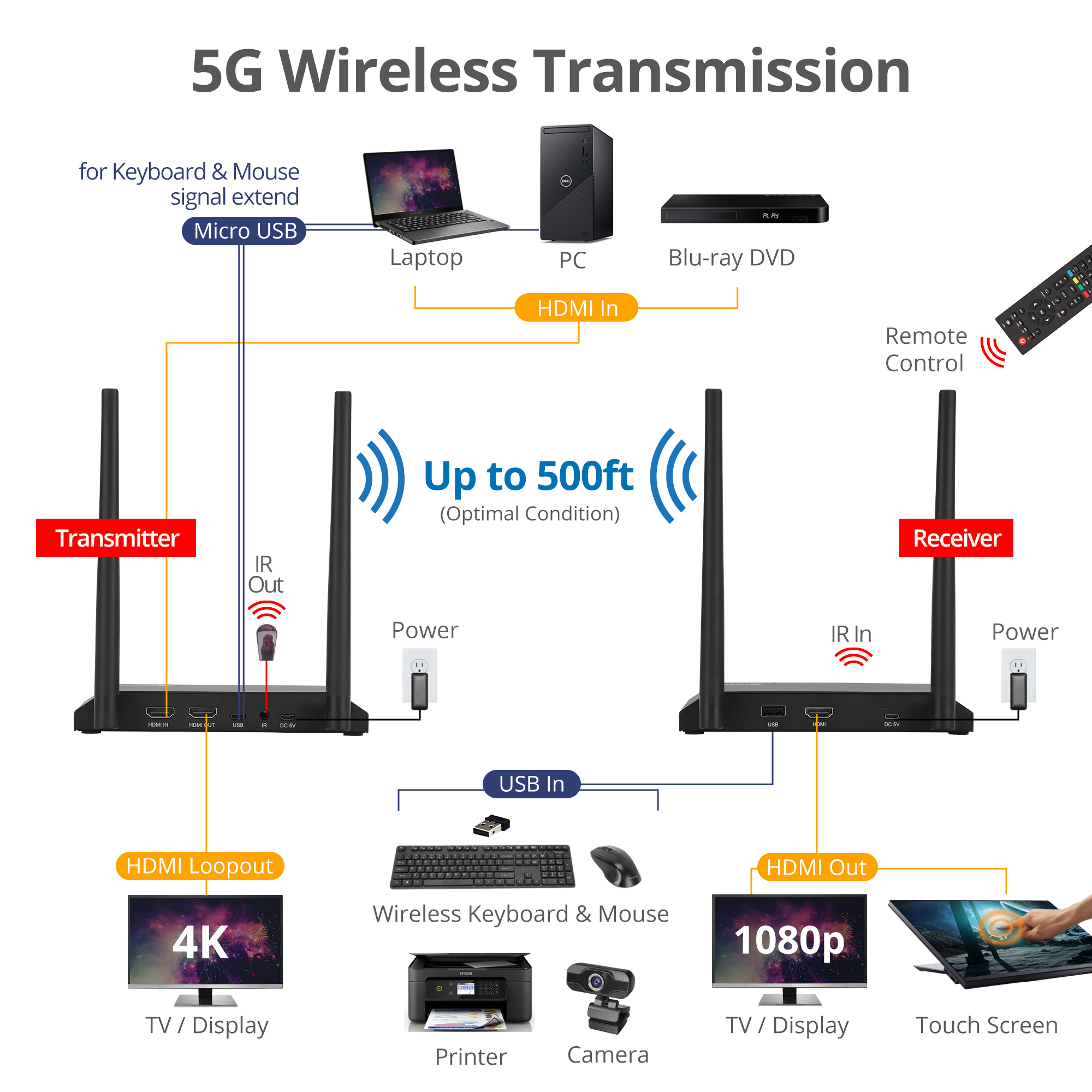

- Wireless 2.4G technology reliably extends HDMI and USB signals up to 500ft (150M) through line-of sight to a remote HDMI display
Note: The transmission distance will vary depending on building layout, electronic interference, walls and partitions, other environmental conditions, and may be much less than the maximum
- Supports USB extension from the transmitter to the receiver, allowing you to connect a keyboard and mouse at the extended location for remotely operate your PC system
- Supports HDMI input & loopout up to 4K60Hz video on Transmitter unit, and Receiver unit supports Full HD video up to 1080p @60Hz and streaming flawless PCM 2-channel stereo audio. Compatible with HDCP 2.2(Transmitter)/1.3(Receiver)
- Easily monitoring video through HDMI loop-out which equipped on the product makes you get more resilience and keep flexible
- Built-in IR signal extension feature allows to control the playback devices remotely and conveniently, Supports an IR signal in the 20-60Hz carrier frequency
- Dual Antenna Design - Dual 5dBi antenna with 2T2R data rate MIMO (Multiple-Input Multiple-Output) technology prevents signal interference and provides optimal reception quality
- Works with most of the HDMI equipped devices including PC or Mac systems
- Plug & Play - No software or driver required. Durable metal housing provides excellent heat dissipation and minimizes EMI/RFI noise interference.
Specification
- HDCP version: TX: HDCP 2.2 compatible; RX: HDCP 1.3 compatible
- Supported Resolutions: HDMI Loopout: Up to 4K60Hz HDR; RX HDMI output: Up to 1080p 60Hz
- Wireless: IEEE 802.11b/g/n/ac, 2.4G/5GHz, 2T2R
- Transmission Distance: 150m (500ft) line-of-sight
Note: The transmission distance will vary depending on building layout, electronic interference, walls and partitions, other environmental conditions, and may be much less than the maximum - HDMI cable length: Up to 2m (Input & Output)
- Latency: About 100ms
- Audio format: PCM 2-channel stereo audio, 44.1KHz
- IR Remote Control: 20-60Hz Frequency Range
- Product
- Color: Black
- Housing: Metal
- Transmitting unit (TX):

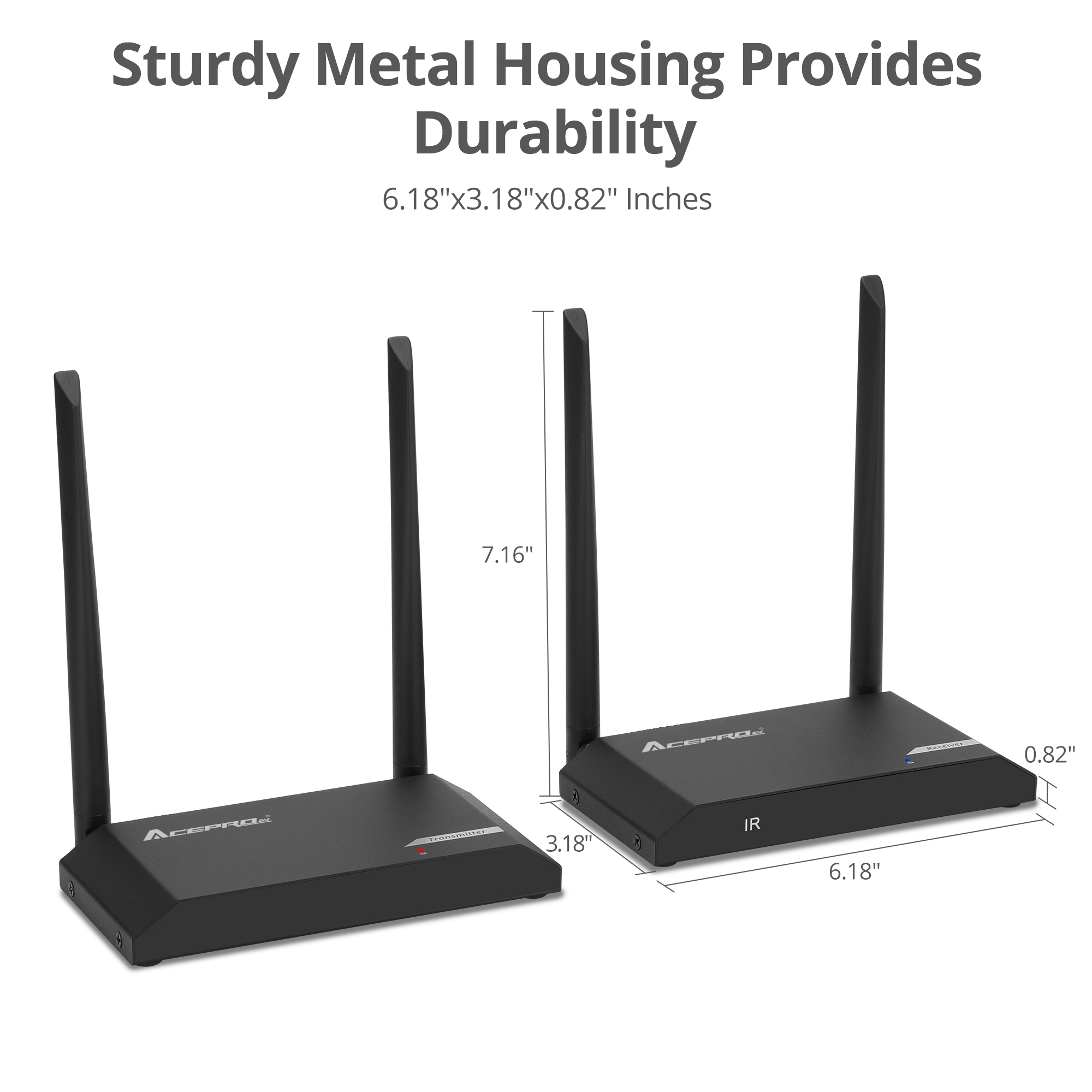

- Dimensions: 6.18" (W) x 0.83" (H) x 3.15" (D)
- Weight: 0.71 lbs

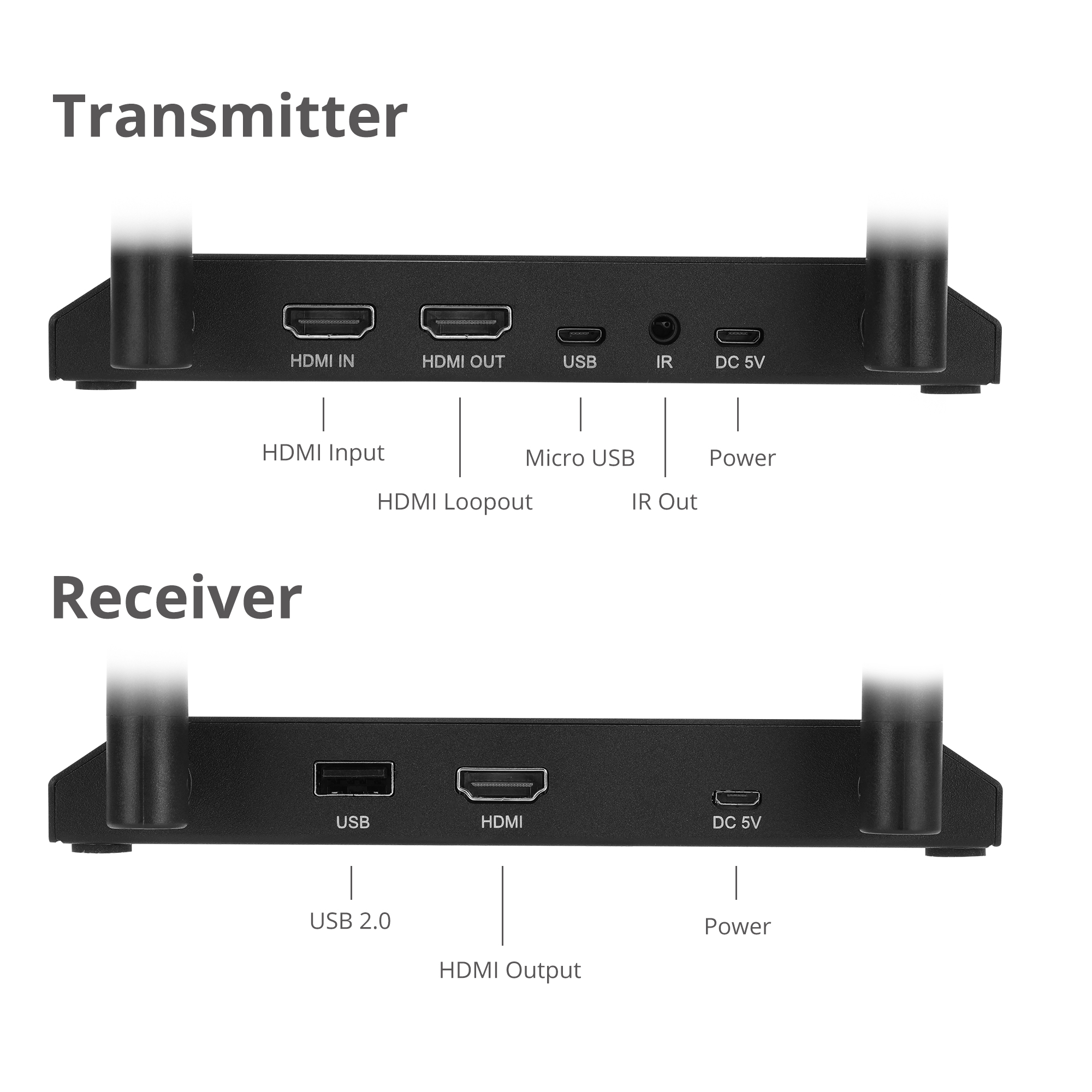

- Connector:
- 1x 19-pin HDMI, Female, Input
- 1x 19-pin HDMI, Female, Loop Out
- 1x 3.5mm IR jack (IR or reset button)
- 1x 5-pin Micro USB for USB 2.0 Source
- 1x 5-pin Micro USB for DC power input
- 2x Antenna port
- Receiving unit (RX):
- Dimensions: 6.18" (W) x 0.83" (H) x 3.15" (D)
- Weight: 0.71 lbs
- Connector:
- 1x 19-pin HDMI, Female, Output
- 1x USB-A HID for Keyboard or Mouse devices
- 1x 5-pin Micro USB for DC power input
- 2x Antenna port
- Unit package:
- Dimensions: 10.04"(W) x 2.44"(H) x 9.25"(D)
- Weight: 2.26 lbs
- Power Adapter
- Input: AC 100-240V/50-60Hz
- Output: DC 5V/1A
- UL Listed: STD1310:2011/ Class: VI
- Environmental conditions:
- Operating temperature: 32 to 104 degrees F
- Storage temperature: 14 to 140 degrees F
- Relative humidity: 10% to 80% RH (non-condensing)
- Certifications/Standards: FCC, CE, RoHS
- Country of origin: Engineered in USA , Manufactured in China
