• AVLAB-US36-1
  • AVLAB USB-C MST Video with Hub LAN & PD 3.0 Dock

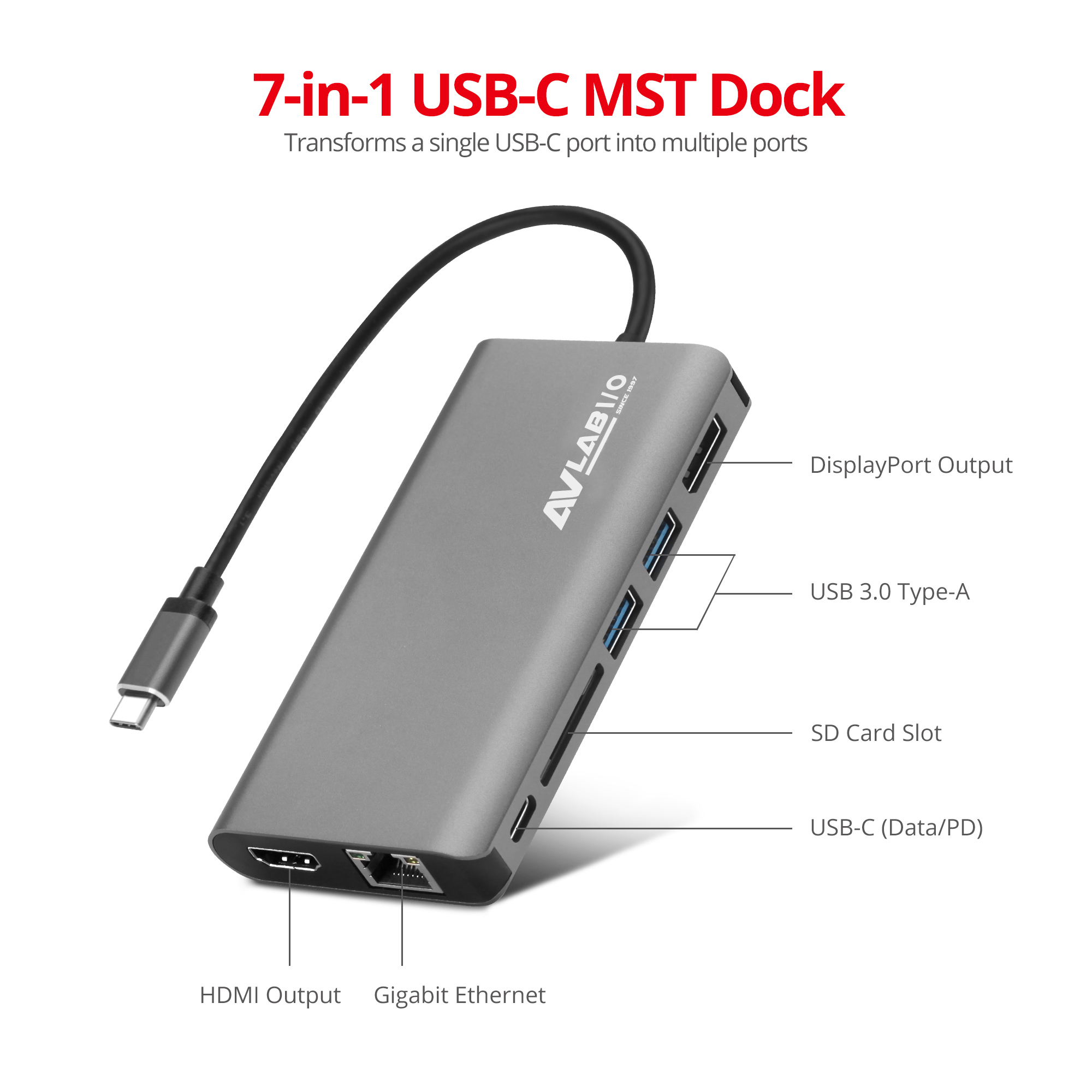

■ Transforms a single USB-C port, with DP Alt mode* or Thunderbolt 3 technology, into multiple connectivity ports including one USB-C port (Charge and Data), one HDMI port, one DisplayPort port, one Gigabit Ethernet, two USB 3.0 ports and one SD memory card slot
■ Supports Mirror mode with identical content displayed on each display, Extended mode** with individual content displayed on each screen

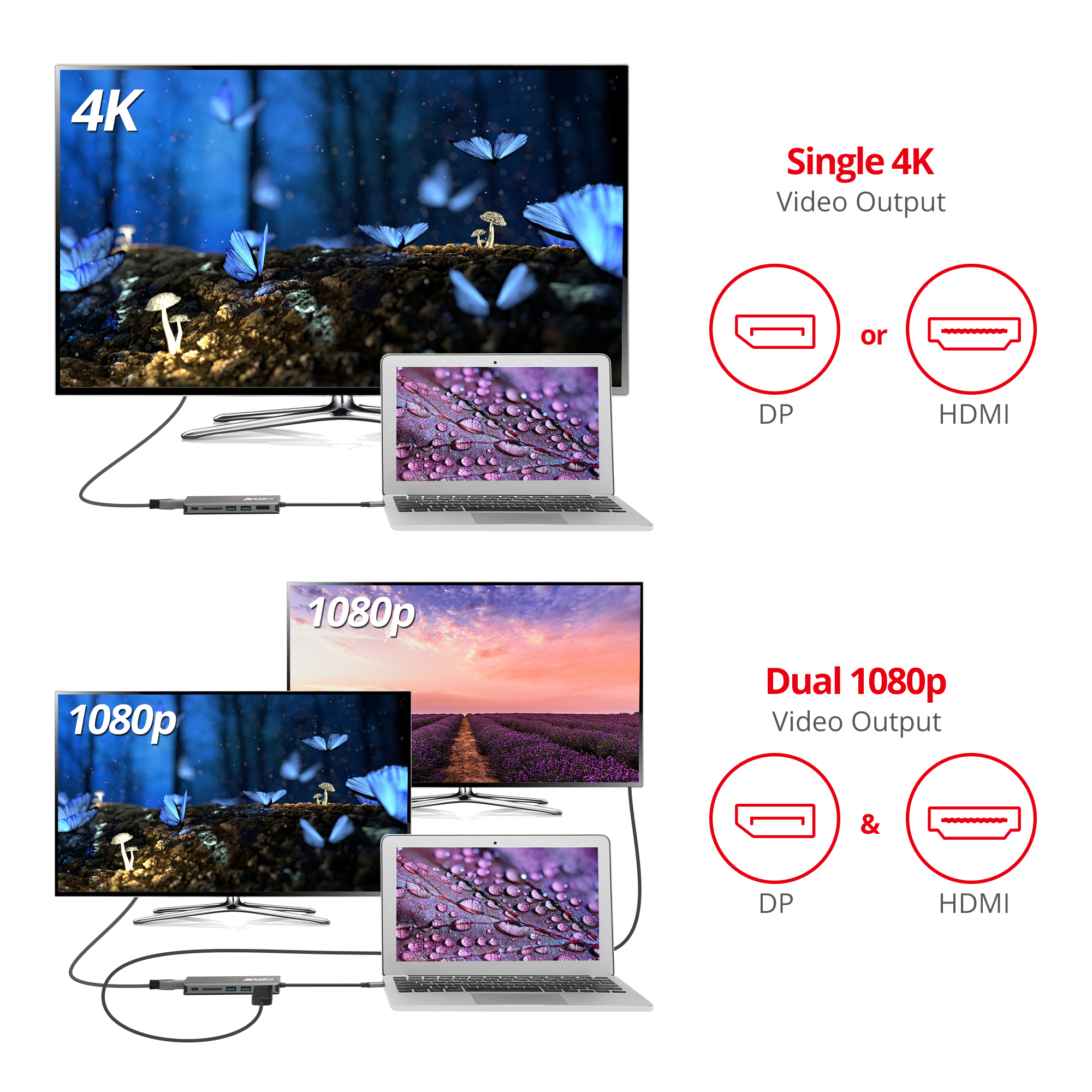

■ DisplayPort Multi-Stream Transport (MST) technology supports single 4K @30Hz Ultra HD video output, dual Full-HD 1080p video outputs***

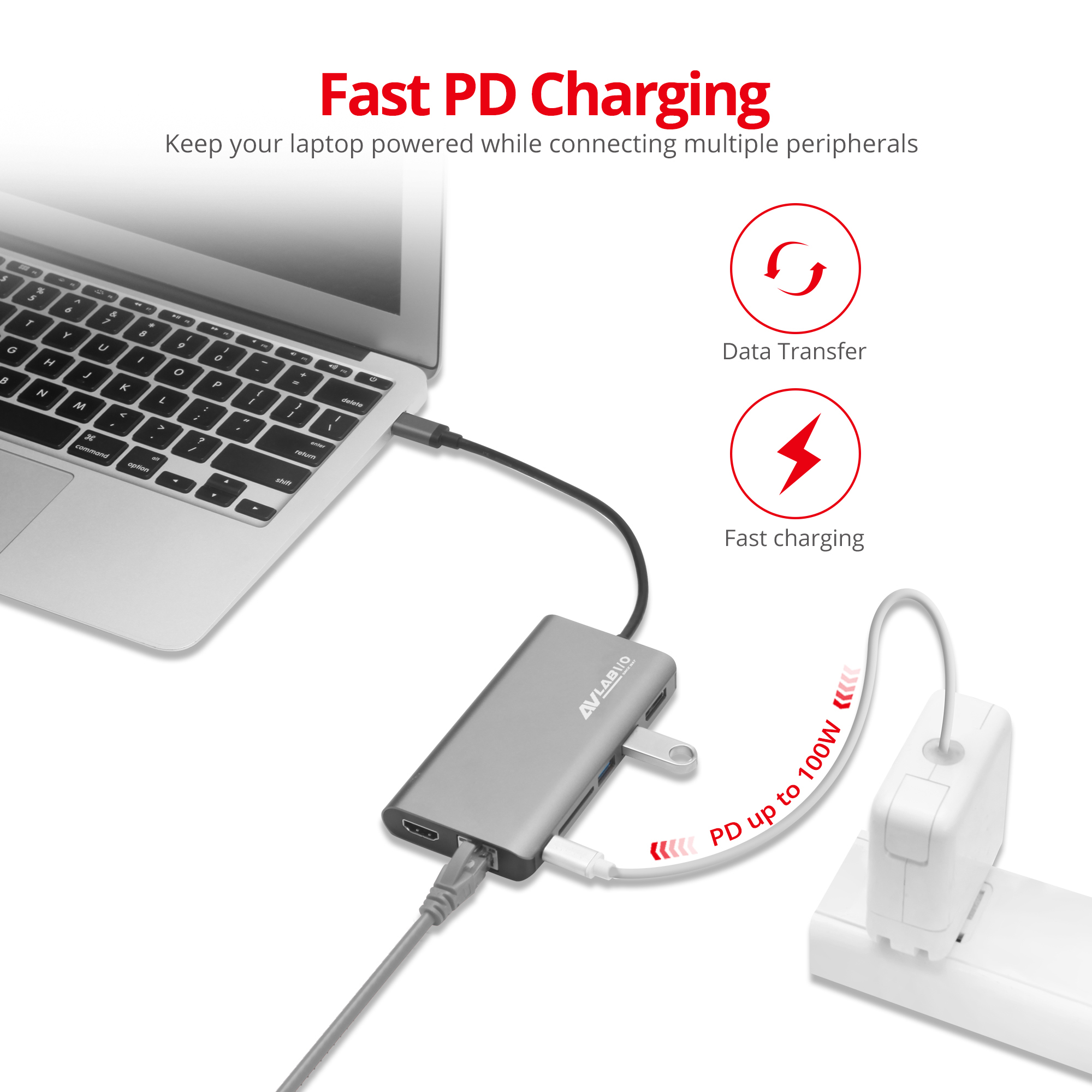

■ Supports PD 3.0**** specification, provides up to 100W to power/charge Laptops, Notebooks, and other peripheral devices
■ Supports USB-C with DisplayPort Alternate mode and Thunderbolt 3 technology
■ Enables you to connect multiple USB peripherals simultaneously such as a mouse, keyboard, flash drive, printer and more
■ SuperSpeed USB 3.0 ports support data transfer rate up to 5Gb/s
■ SD flash memory card slots support various SD memory cards of up to 2TB capacity, perfect solution for transferring files from your portable devices to your computer
■ Plug-n-play, no driver installation or power adapter required
■ Slim and compact aluminum housing provides excellent heat dissipation and extra EMF protection for reliable performance, a great tool to increase your productivity for home, office or on-the- go
Notes:
*Requires a USB-C port that supports “DisplayPort Alternate Mode” (DP Alt Mode). Not all USB-C ports/systems support DP Alt Mode functionality.
**Mac OS does not support MST function and will only mirror the displays.
***Requires GPU / graphics card to support at least 2 external displays to use both video ports at the same time with extended mode.
****The computer and power adapter must support PD 3.0 specification, otherwise the dock will reset when power delivery is disconnected.

  • $0 $0

Highlights

Transforms a single USB-C port, with DP Alt mode* or Thunderbolt 3 technology
Into multiple connectivity ports including one USB-C port (Charge and Data), one HDMI port, one DisplayPort port, one Gigabit Ethernet, two USB 3.0 ports and one SD memory card slot

Supports Mirror mode with identical content displayed on each display
Extended mode** with individual content displayed on each screen

DisplayPort Multi-Stream Transport (MST) technology
Supports single 4K @30Hz Ultra HD video output, dual Full-HD 1080p video outputs***

Supports PD 3.0**** specification
Provides up to 100W to power/charge Laptops, Notebooks, and other peripheral devices

Supports USB-C with DisplayPort Alternate mode and Thunderbolt 3 technology

Enables you to connect multiple USB peripherals simultaneously
Such as mouse, keyboard, flash drive, printer and more
SuperSpeed USB 3.0 ports support data transfer rate up to 5Gb/s

SD flash memory card slots
Support various SD memory cards of up to 2TB capacity, perfect solution for transferring files from your portable devices to your computer

Plug-n-play, no driver installation or power adapter required

Slim and compact aluminum housing
Provides excellent heat dissipation and extra EMF protection for reliable performance, a great tool to increase your productivity for home, office or on-the-go

Notes:
*Requires a USB-C port that supports “DisplayPort Alternate Mode” (DP Alt Mode). Not all USB-C ports/systems support DP Alt Mode functionality.
**Mac OS does not support MST function and will only mirror the displays.
***Requires GPU / graphics card to support at least 2 external displays to use both video ports at the same time with extended mode.
****The computer and power adapter must support PD 3.0 specification, otherwise, the dock will reset when power delivery is disconnected.

Specification

Chipset:STDP4320+VL817+VL102+RTL8153B+GL823K



Compatible with USB-C Alt-mode and Thunderbolt 3 technology



Compatible with DisplayPort 1.2 with MST graphics cards with AMD Eyefinity, NVIDIA Surround and Intel Multiple Displays technology



Power Delivery 3.0 specification:20/12/5V @5A/3A/2A/1.5A, up to 100W



USB data transfer rate:up to 5Gb/s



Compatible networks:10/100/1000 Mbps



Memory Card Types:SDHC 2.0, SDXC 2.0 up to 40Mbps



Memory Card Capacity:SDHC up to 32GB, SDXC up to 2TB (max)



USB Bus-powered



Supported video cable length:
■ HDMI: Up to 5 meters (max)
■ DisplayPort: Up to 3 meters (max)



Resolution:
■ Single video mode:
DisplayPort: Up to 3840x2160 @30Hz
HDMI: Up to 3840x2160p @30Hz
■ Dual video mode:
DP and HDMI: Up to 1080p @60Hz (each display)



Product:

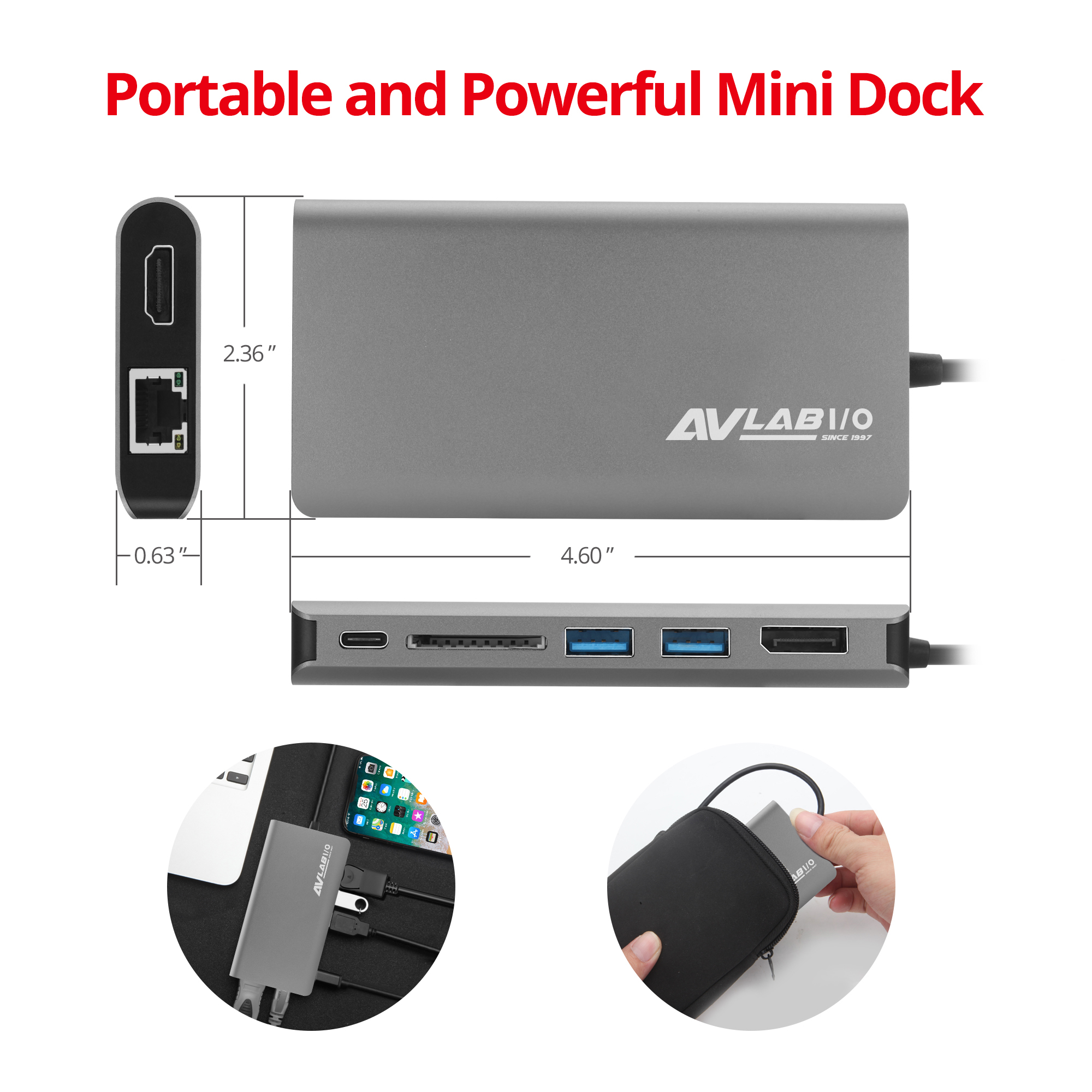

■ Dimensions: 4.59" (L) x 0.63" (H) x 2.39" (W)
■ Weight: 0.26 lbs
■ Color: Iron Gray with Black
■ Housing material: Aluminum housing
■ Connectors:
1x 24-pin, USB-C, Male, for PC connection
1x 24-pin, USB-C, Female, for PD 3.0 charging & USB 3.0 data transmission
 2x 9-pin, USB 3.0, Female, output
1x 19-pin, HDMI Type-A video, Female, Output
1x 20-pin, DisplayPort video, Female, Output
1x 8-pin, RJ-45, Gigabit Ethernet, Female
1x SD Card Reader, Female



Cable:
■ USB-C
■ Length:200+-10mm



Environmental conditions:
■ Operating temperature: 32 to 104 degrees F
■ Storage temperature: 14 to 158 degrees F
■ Relative humidity: < 5% to 90% RH (non-condensing)



Certifications/Standards:FCC, CE, RoHS



Warranty:1 years limited



Country of origin:China



Notes:
Requires a USB-C port that supports “DisplayPort Alternate Mode” (DP Alt Mode). Not all USB-C ports/systems support DP Alt Mode functionality Mac OS does not support MST function and will only mirror the displays
Requires GPU / graphics card to support at least 2 external displays to use both video ports at the same time with extended mode
The computer and power adapter must support PD 3.0 specification, otherwise the dock will reset when power delivery is disconnected



Requirements
■ Desktop or laptop computer with an available USB-C port (DP Alt Mode or Thunderbolt 3)
Note:Requires a USB-C port that supports “DisplayPort Alternate Mode” (DP Alt Mode). Not all USB-C ports/systems support DP Alt Mode functionality.
■ Windows® 10 / 8 / 7 (32-/64-bit)
■ Mac OS X® 10.13 or later
Note:Mac OS does not support MST function and will only mirror the displays.



Package Contents
■ USB-C MST Video with Hub LAN & PD 3.0 Dock
■ User Reference Guide
