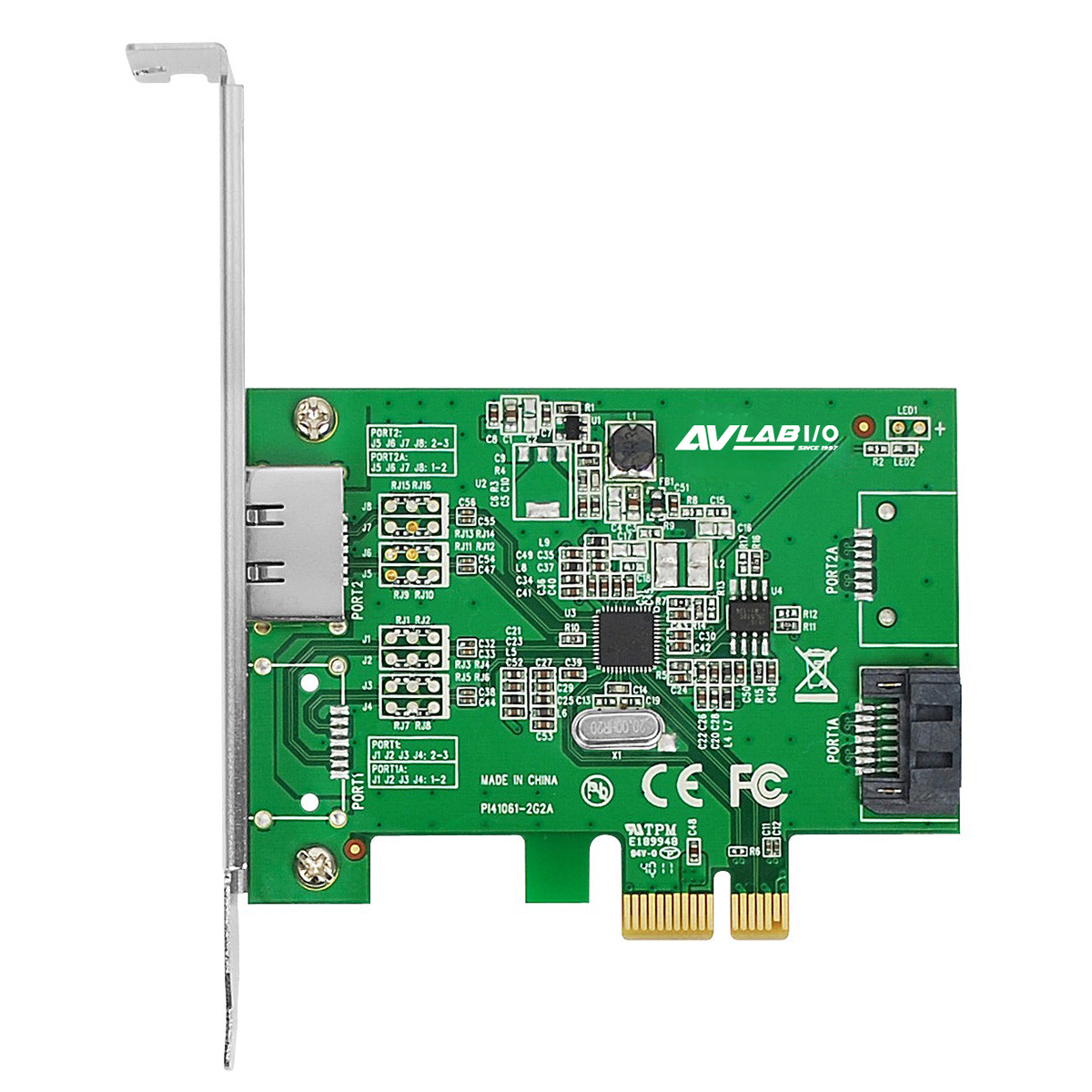

  • AVLAB Dual Port eSATA PCIe i/e Card, 6Gbps, External and Internal Serial ATA, Dual Profile Bracket

■ Adds 1 external SATA (eSATA) and 1 internal 6Gb/s channels to your PCIe system
■ Supports port multiplier - up to 5 hard disks (max) on each eSATA port and up to 7 hard disks amongst the connected port multipliers. Note: The included Asmedia driver must be installed for port multiplier operation
■ Installs in standard height or low profile chassis with included brackets
■ Works with the latest 6Gb/s SATA HDDs and backwards compatible with 3Gb/s and 1.5Gb/s HDDs

  • $0 $0

Highlights

EXPANSION
Adds 1 external SATA (eSATA) and 1 internal 6Gb/s channels to your PCIe system

MULTIPLE HARD DISK SUPPORT
Supports port multiplier - up to 5 hard disks (max) on each eSATA port and up to 7 hard disks amongst the connected port multipliers. Note: The included Asmedia driver must be installed for port multiplier operation

FULL HEIGHT AND LOW PROFILE SUPPORT
Installs in full height and low profile chassis with included brackets

BACKWARDS COMPATIBLE
Works with the latest 6Gb/s SATA HDDs and backwards compatible with 3Gb/s and 1.5Gb/s HDDs

Specification

Chipset: Asmedia ASM1061

Compliant with Serial ATA specification, Revision 3.0

Compliant with PCI Express Base specification, Revision 2.0

Supports ATA/ATAPI-7 specification


Supports port multiplier on each port:
■  Supports up to 5 hard disks (max) on each port multiplier and up to 7 hard disks (combined) amongst the connected port multipliers
■  The included Asmedia driver must be installed for port multiplier operation

Supports Native Command Queuing (NCQ)

Supports 6Gb/s data transfer rate (max)

Supports 48-bit LBA and verified to work with up to 4TB drives


Ports:
■  1 x external SATA (eSATA) 6Gb/s
■  1 x internal SATA 6Gb/s

Product dimensions: 3.50" (W) x 4.75" (H) x 0.75" (D)

Product weight: 0.15 lbs

Environmental conditions:
■  Operating temperature: 32 to 140 degrees F (0 to 50 degrees C)
■  Operating humidity: 10% to 90% RH
■  Storage temperature: 68 to 140 degrees F (-20 to 60 degrees C)
■  Storage humidity: 5% to 95% RH

Certifications/Standards: FCC, CE, RoHS

Warranty: 1 years limited

Country of origin: China
