• AcePro-CE22-1
  • AcePro 5x1 4K HDMI Switch with Remote Control, 4K60Hz (YUV 4:2:0), 4K30Hz (YUV 4:4:4)

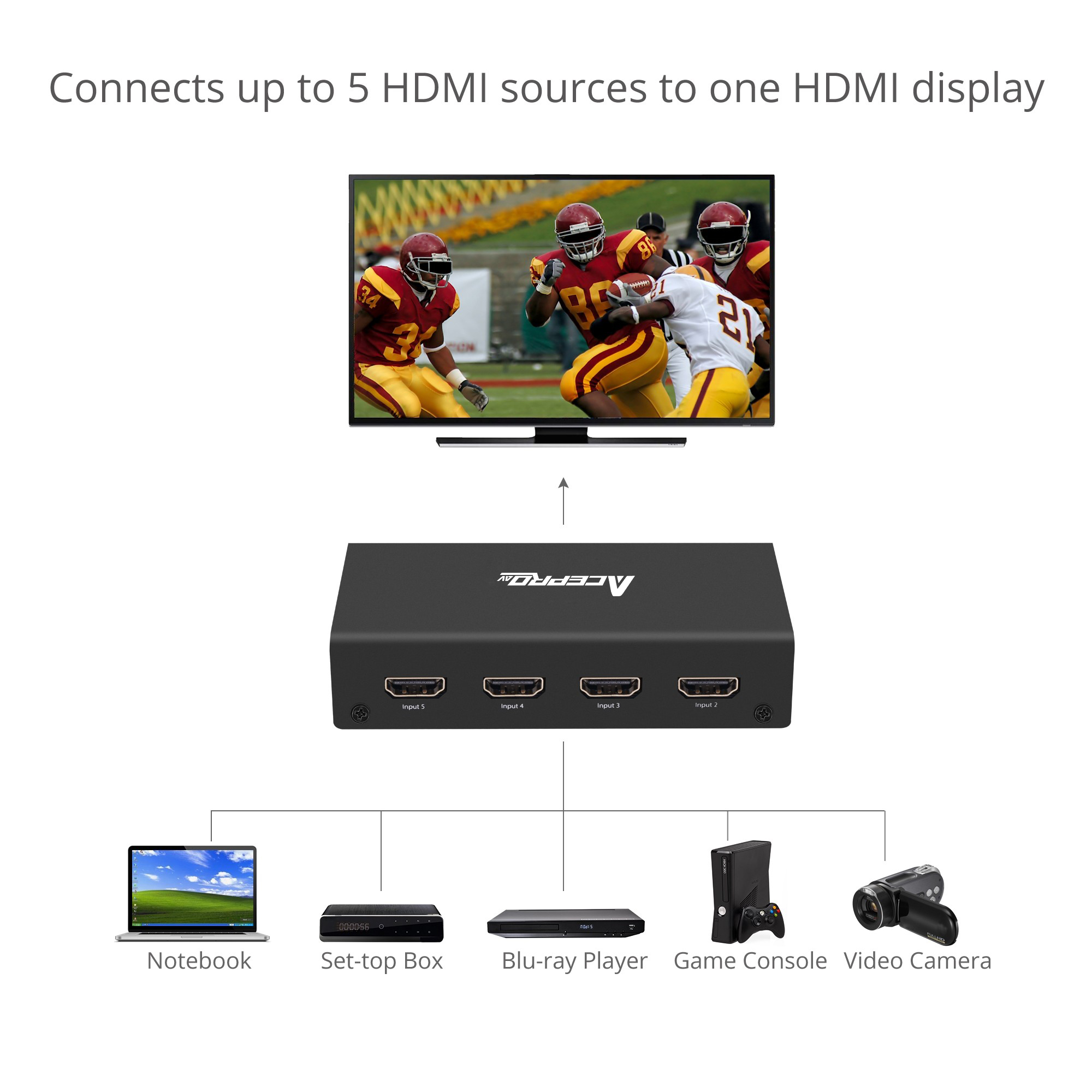

■ Connect up to 5 UHD 4K HDMI sources to one UHD 4K HDMI display
■ Supports most HDMI host devices such as PCs, laptops, TV boxes, gaming consoles, Blu-ray and DVD players and HDMI display devices such as projectors, HDR TVs and Monitors
■ This premium quality 4K HDMI switch gives you stable, distortion free audio and video supporting Ultra High Definition video up to 4Kx2K@60Hz YUV420 and 4Kx2K@30Hz YUV444
■ Compatible with Dolby TrueHD and DTS-HD master audio
■ Easily switch among the connected HDMI source devices using either the included remote control or front-panel push button
■ Sturdy metal housing provides durability and reduces EMI/RFI interference

  • $0 $0

Highlights

Connect up to 5 UHD 4K HDMI sources to one UHD 4K HDMI display

Supports most HDMI host devices
such as PCs, laptops, TV boxes, gaming consoles, Blu-ray and DVD players and HDMI display devices such as projectors, HDR TVs and Monitors

This premium quality 4K HDMI switch
gives you stable, distortion-free audio and video supporting Ultra High Definition video up to 4Kx2K@60Hz YUV420 and 4Kx2K@30Hz YUV444

Compatible with Dolby TrueHD and DTS-HD master audio

Easily switch among the connected HDMI source devices
using either the included remote control or front-panel push button

Sturdy metal housing
provides durability and reduces EMI/RFI interference

Requirements
HDMI source devices such as computers, Blu-ray/DVD players, and media players
HDMI displays, monitors, HD TVs

Package Contents
5x1 HDMI Switch 4K
Power Adapter
Remote control
User Reference Guide

Specification

Compliant with HDMI 1.4 / HDCP 1.4



Supports 3D and CEC

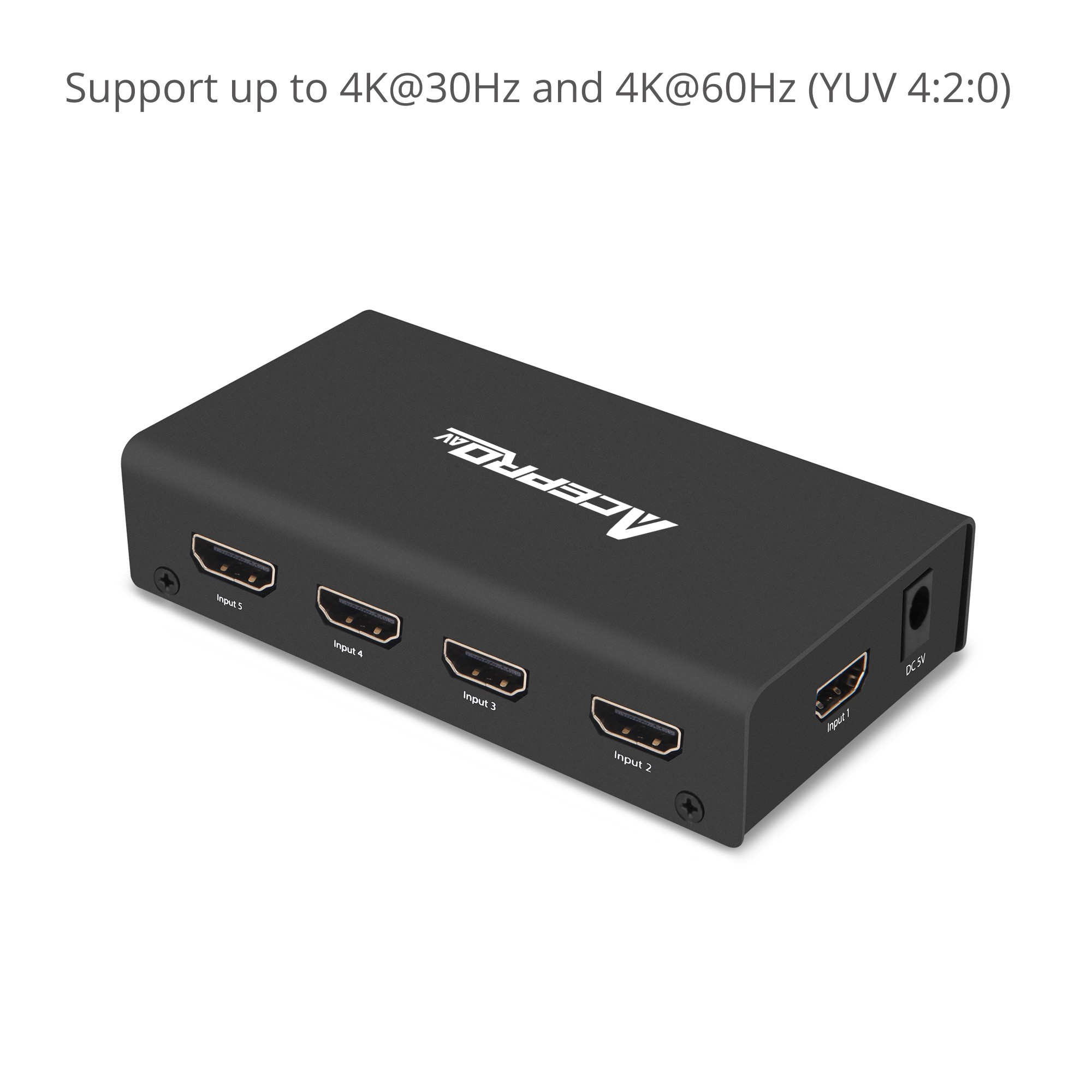

Resolution: 720p / 1080i / 1080p / 4K (3840x2160) @30Hz YUV444  / 4K (3840x2160) @60Hz YUV420



Video Bandwidth: Up to 10.2 Gbps



HDMI cable length: Input up to 5M & Output up to 10M



Compatible with Dolby TrueHD and DTS-HD master audio



Product:

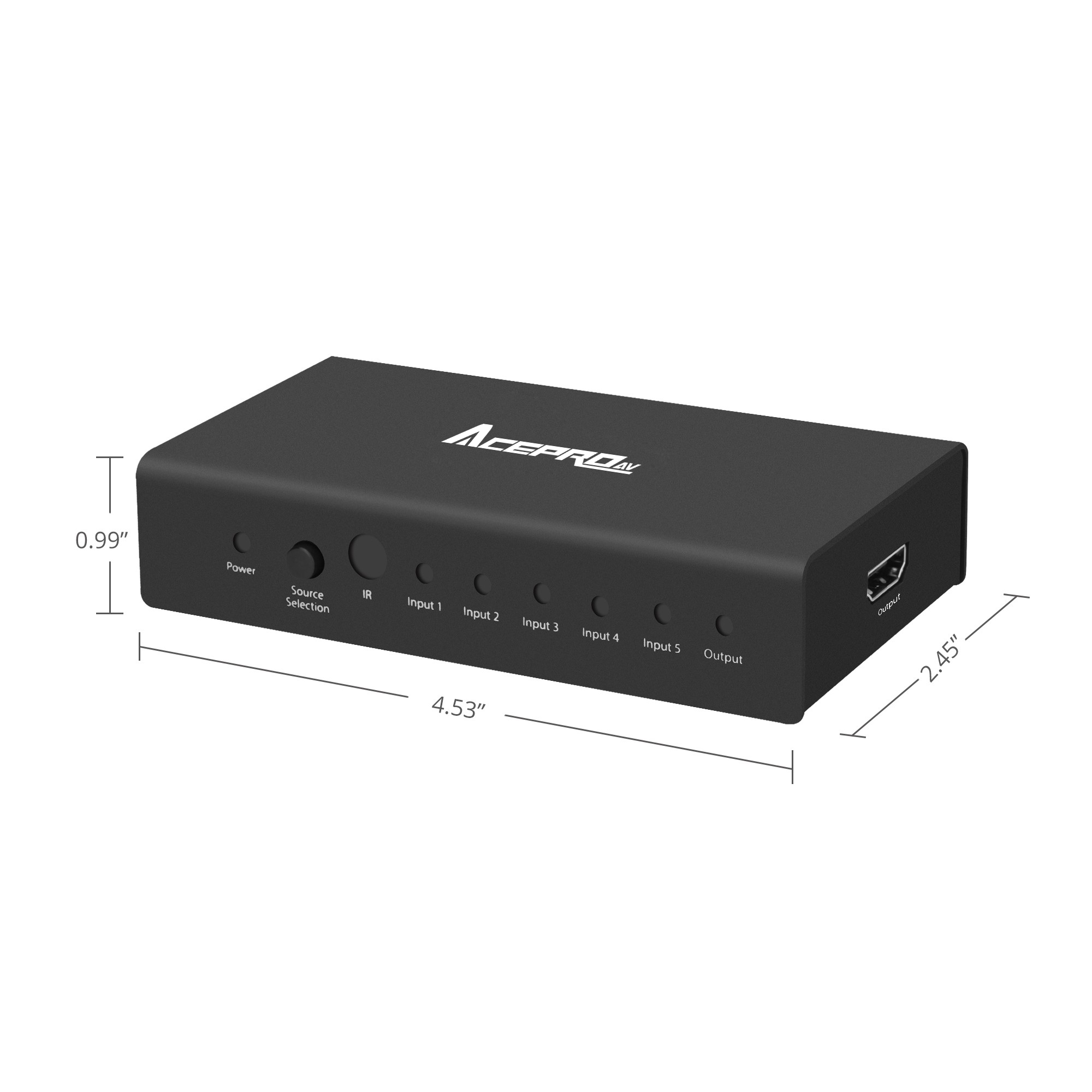

■ Dimensions: 4.53" (W) x 0.99" (H) x 2.45" (D)

■ Weight: 0.69 lbs

■  Housing: Metal

■ Color: Black

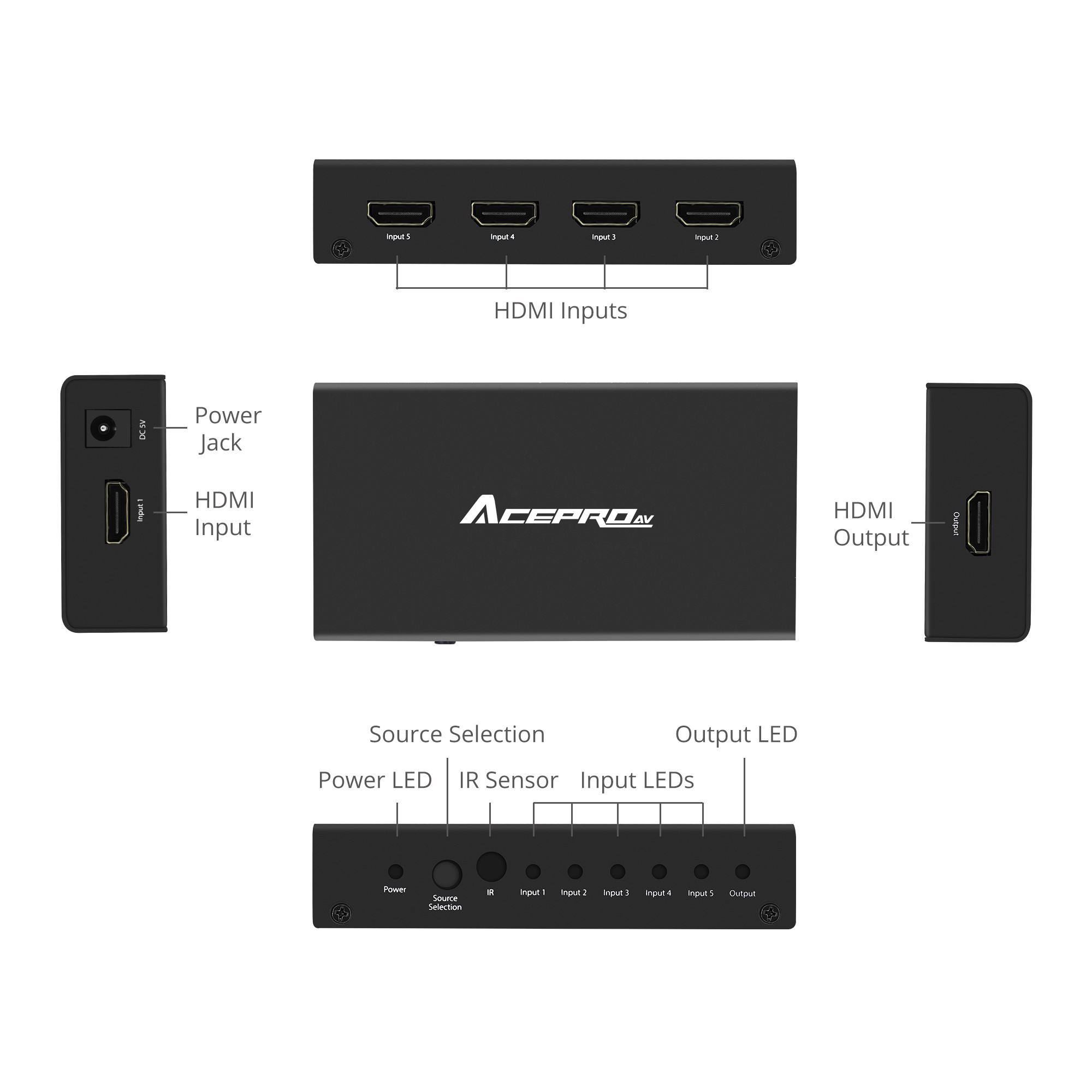

Connector:

■ 1x 19-pin, HDMI, Female, Output
■ 5x 19-pin, HDMI, Female, Input
■ 1x Power Jack
■ 1x Source Selection



Power Adapter:
■ Input: 100-240V AC/50-60Hz
■ Output: 5V DC/1A



Environmental conditions:
■ Operating temperature: 32 to 104 degrees F
■ Storage temperature: -4 to 158 degrees F
■ Relative humidity: 20% to 90% RH (non-condensing)



Certifications/Standards: FCC, CE, RoHS



Warranty:1 years limited



Country of origin: China

FAQ

  • Q: What is “HDCP”?
  • HDCP stands for High-Bandwidth Digital Content Protection, a copy protection scheme to eliminate the possibility of intercepting digital data midstream between the source to the display.

    The format designed by Intel and licensed by Digital Content Protection, LLC using an authentication and key exchange procedure before video and audio is presented.

    Products compatible with the HDCP scheme such as DVD players, satellite and cable HDTV set-top-boxes, as well as few entertainment PCs requires a secure connection to a compliant display, the process often described as the handshake.

    Due to the increase in manufacturers employing HDCP in their equipment, it is highly recommended that any HDTV you purchase is compatible.

    Although most video devices support high-definition video over component output, analog connections are scheduled to phase out in the future or possibly forced to limited resolutions output.
  • Q: What different between HDMI 2.0 & HDMI 1.4 when use 4K resolution?
  • HDMI 1.4 introduced the kind of bandwidth required to deliver 4K video, but HDMI 2.0 can dole out 4K video without compromise, at 50 and 60 frames per second. In HDMI 1.4, the rate of 4K was limited to 24 frames per second.

    4K logo 24p and 30p are perfect for watching films, but there are times when the extra speed of 50p and 60p come in handy. Gaming could make great use of 60p content, while more films are being shot at higher frame rates, giving quite a different look from that of slow old traditional cinema.
  • Q: What is “EDID”?
  • Extended Display Identification Data is a VESA standard data format that contains basic information about a monitor and its capabilities, including vendor information, maximum image size, color characteristics, factory pre-set timings, frequency range limits, and character strings for the monitor name and serial number.

    The information is stored in the display and is used to communicate with the system through a Display Data Channel (DDC), which sites between the monitor and the PC graphics adapter. The system uses this information for configuration purposes, so the monitor and system can work together.
