• AVLAB-CE05-1
  • AVLAB DisplayPort 1.2 to 3-Port HDMI MST Splitter, 4K 30Hz, Aluminum, woven braided cable, Multiple Display

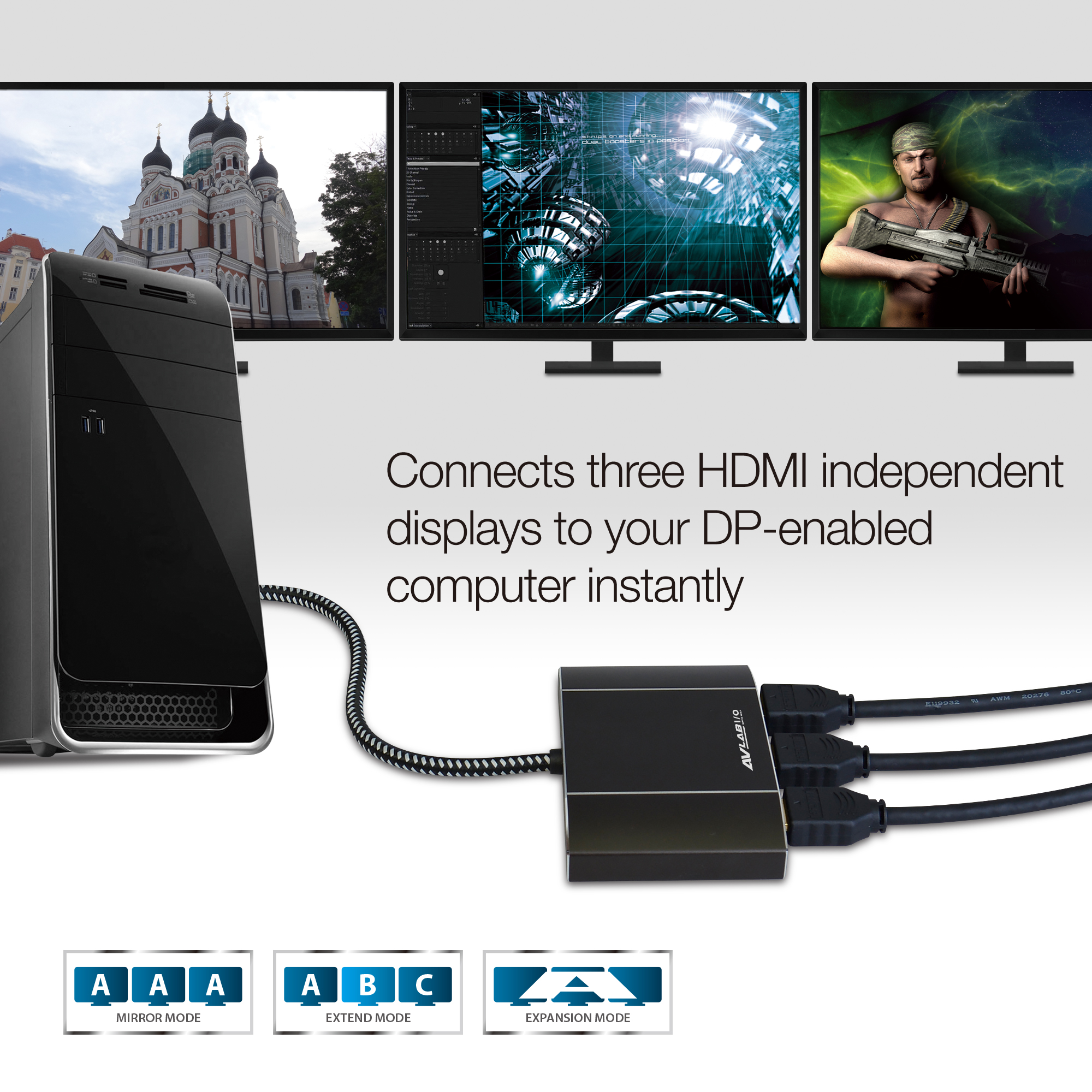

■ Boost your productivity by connecting three HDMI displays to single DisplayPort output with Multi-Stream Transport (MST) technology

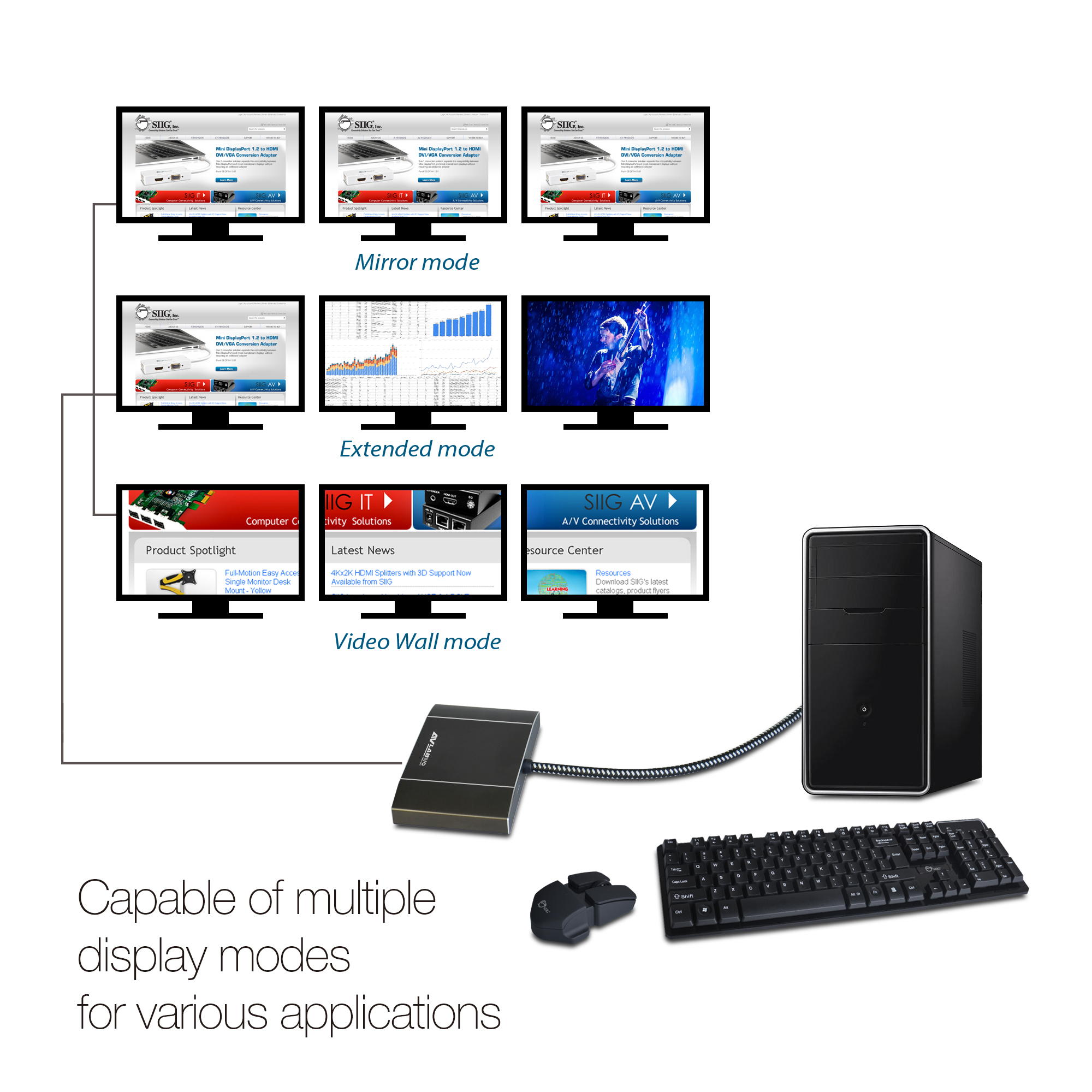

■ Provides multiple display modes for various applications such as Mirror* mode same content on each display, Extended mode with individual content on each display, and Video Wall mode** which combines multiple monitors to use as one large display
Note: *Mirror mode using a NVIDIA Surround technology graphics adapter is limited to 2 displays. **Video Wall mode requires either a AMD Eyefinity, Intel, or NVIDIA Surround technology graphics adapter
■ Supports UHD video resolutions up to 3840x2160 @30Hz (4K) and 7.1-ch surround audio
■ Compatible with DisplayPort 1.2 MST graphics adapters such as AMD Eyefinity, NVIDIA Surround technology, or various Intel Graphics
■ Plug-n-play, hassle-free set up without complicated hardware or driver installation
■ Premium aluminum housing reduces outside interference and provides optimal video quality
■ Built-in woven braided DisplayPort cable for enhanced durability

  • $0 $0

Highlights

Boost your productivity
by connecting three HDMI displays to single DisplayPort output with Multi-Stream Transport (MST) technology

Provides multiple display modes
for various applications such as Mirror* mode same content on each display, Extended mode with individual content on each display, and Video Wall mode** which combines multiple monitors to use as one large display
Note: *Mirror mode using a NVIDIA Surround technology graphics adapter is limited to 2 displays. **Video Wall mode requires either a AMD Eyefinity, Intel, or NVIDIA Surround technology graphics adapter

Supports UHD video resolutions
up to 3840x2160 @30Hz (4K) and 7.1-ch surround audio

Compatible with DisplayPort 1.2 MST graphics adapters
such as AMD Eyefinity, NVIDIA Surround technology, or various Intel Graphics

Plug-n-play
hassle-free set up without complicated hardware or driver installation

Premium aluminum housing
reduces outside interference and provides optimal video quality

Built-in woven braided DisplayPort cable for enhanced durability

Requirements
Desktop or laptop computer with an available DisplayPort 1.2 with Multi-Stream Transport (MST) output connector
AMD Eyefinity, NVIDIA Surround technology, or Intel with DisplayPort 1.2 with MST graphics adapters

Package Contents
Displayport 1.2 to 3-Port HDMI MST Splitter
Micro USB power cable
User Reference Guide

Specification

Chipset: STDP4320



Maximum resolution: 3840x2160 @30Hz (4K)



Compliant with DisplayPort 1.2a specifications



Display Modes: Mirror*, Extend, Video Wall (e.g., 2x2, Panoramic)**

Note: *Mirror mode using a NVIDIA Surround technology graphics adapter is limited to 2 displays. **Video Wall mode requires either a AMD Eyefinity, Intel, or NVIDIA Surround technology graphics adapter



Total Bandwidth 21.6Gbps (100%): 3840x2160 @30Hz (40%); 2560x1600 @60Hz (38%); 2560x1440 @60Hz (35%); 1920x1200 @60Hz (30%); 1920x1080 @60Hz (22%)
Note: The total combined bandwidth among all connected HDMI displays must NOT be exceeded



Product:

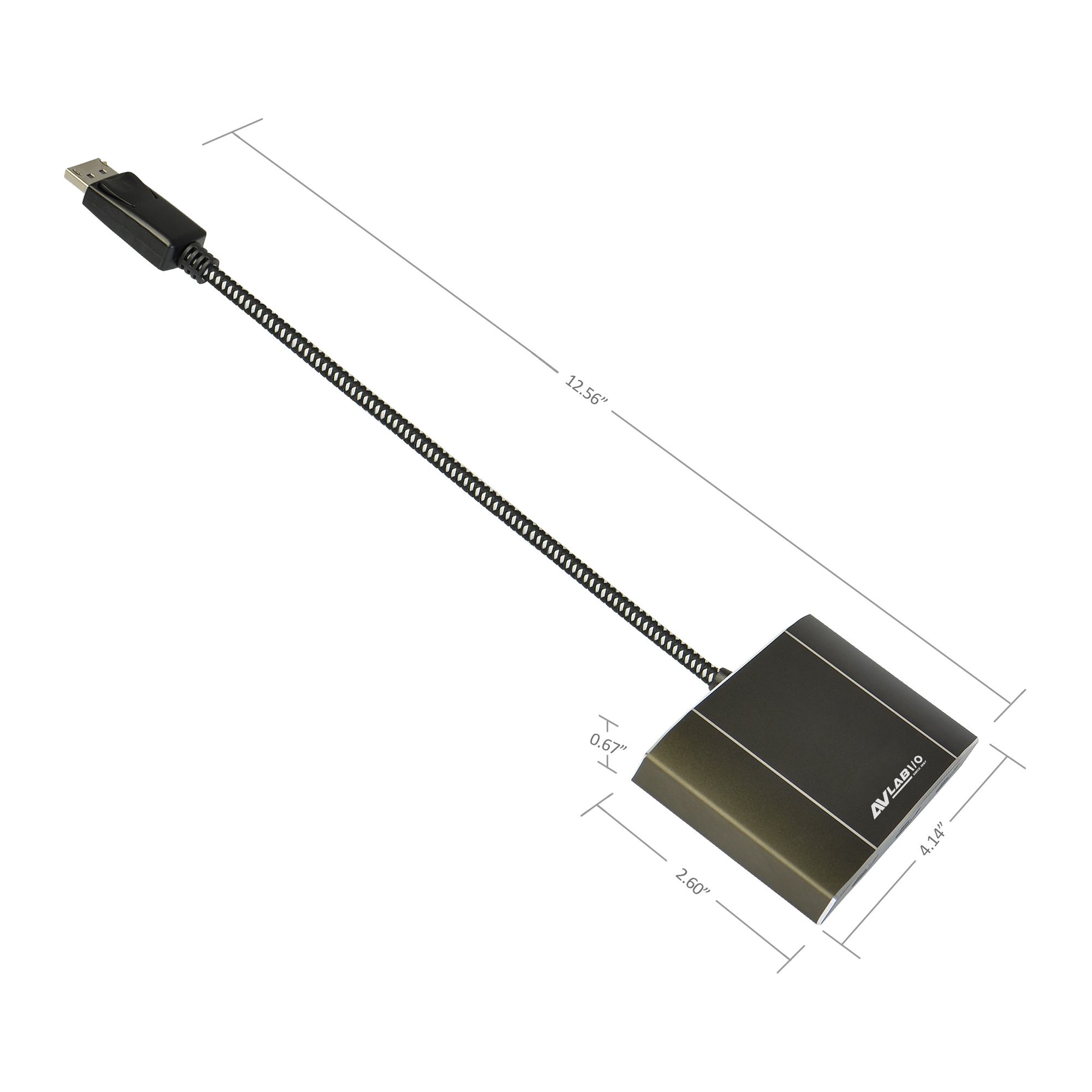

■ Dimensions: 4.14" (W) x 2.60" (H) x 0.67" (D)
■ Weight: 0.27 lbs
■ Color: Black
■ Housing: Aluminum
■ Embedded DisplayPort cable length: 7.9" (200mm)



Connector:
■ 1x 20-pin, DisplayPort, Male, Input
■ 3x 19-pin, HDMI, Type A, Female, Output

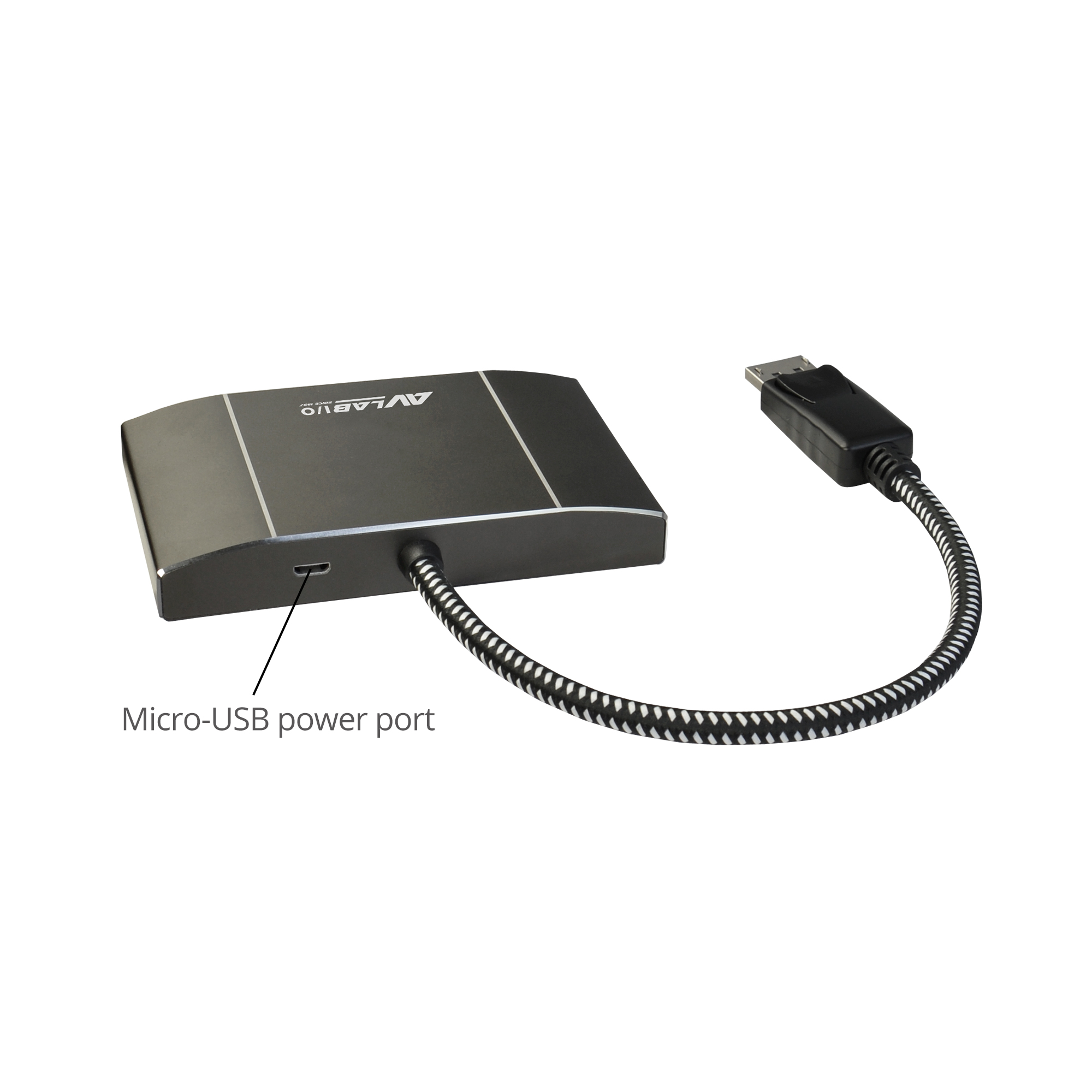

■ 1x 5-pin, Micro USB, Female, Input (for power only)



Micro USB Power Cable:
■ Micro USB (male) to USB Type-A (male)
■ Length: 3.3 ft (1m)



Environmental Conditions:
■ Operating temperature: 32 to 104 degrees F
■ Storage temperature: -4 to 158 degrees F
■ Relative humidity: 5% to 90% RH (non-condensing)



Certifications/Standards: FCC, CE, RoHS



Warranty: 1 years limited



Country of origin: China

FAQ

  • Active or passive converter and what is the difference?
  • A passive video signal converter changes the type of connection that is being used but does not change the signal that passes through the converter. Because the video signal is not modified, passive converters tend to be smaller, simpler, and less expensive than active video signal converters. Examples of passive converters include DVI-I to VGA, HDMI to DVI, and DisplayPort to Mini-DisplayPort converters.

    An active video signal converter modifies both the type of connection that is being used and the signal that passes through the converter. Because this type of conversion can be complex, active converters tend to be larger than passive video signal converters and sometimes require additional power. Examples of active converters include DVI-D to VGA, HDMI to DisplayPort, and VGA to HDMI converters.
  • My DisplayPort display is not working when I try to output 4K at 30Hz with this device. How do I resolve this issue?
  • To output 4K to a DisplayPort display at 30Hz, your monitor must support the resolution and refresh rate. If your monitor also supports 4K at 60Hz (DP 1.2 or higher), you may also need to set the monitor to work at 30Hz.

    To resolve this issue, use the buttons on your monitor to change the DisplayPort settings to DP1.1. For more information about how to change your monitor settings, refer to the website of the manufacturer of your monitor.
  • Does this device require me to install drivers. Or perform any other setup tasks?
  • This cable/adapter is plug and play. It does not use any drivers, and does not require any setup tasks other than plugging in the source (for example, a computer) and the destination (for example, a monitor).
