• AcePro-CE43-1
  • AcePro 1x3 S/PDIF Toslink Splitter

■ Handy tool to split 1 Toslink S/PDIF digital input into 3 Toslink S/PDIF digital outputs
■ Built-in digital signal amplifier maintains signal integrity without signal loss
■ Supports LPCM, AC3, DTS audio, 24-bit audio depth, with sample rate up to 192KHz
■ Sturdy metal enclosure provides durability and minimizes EMI/RF noise interference for long life and dependable performance
■ Plug and play, no software installation required

  • $0 $0

Highlights

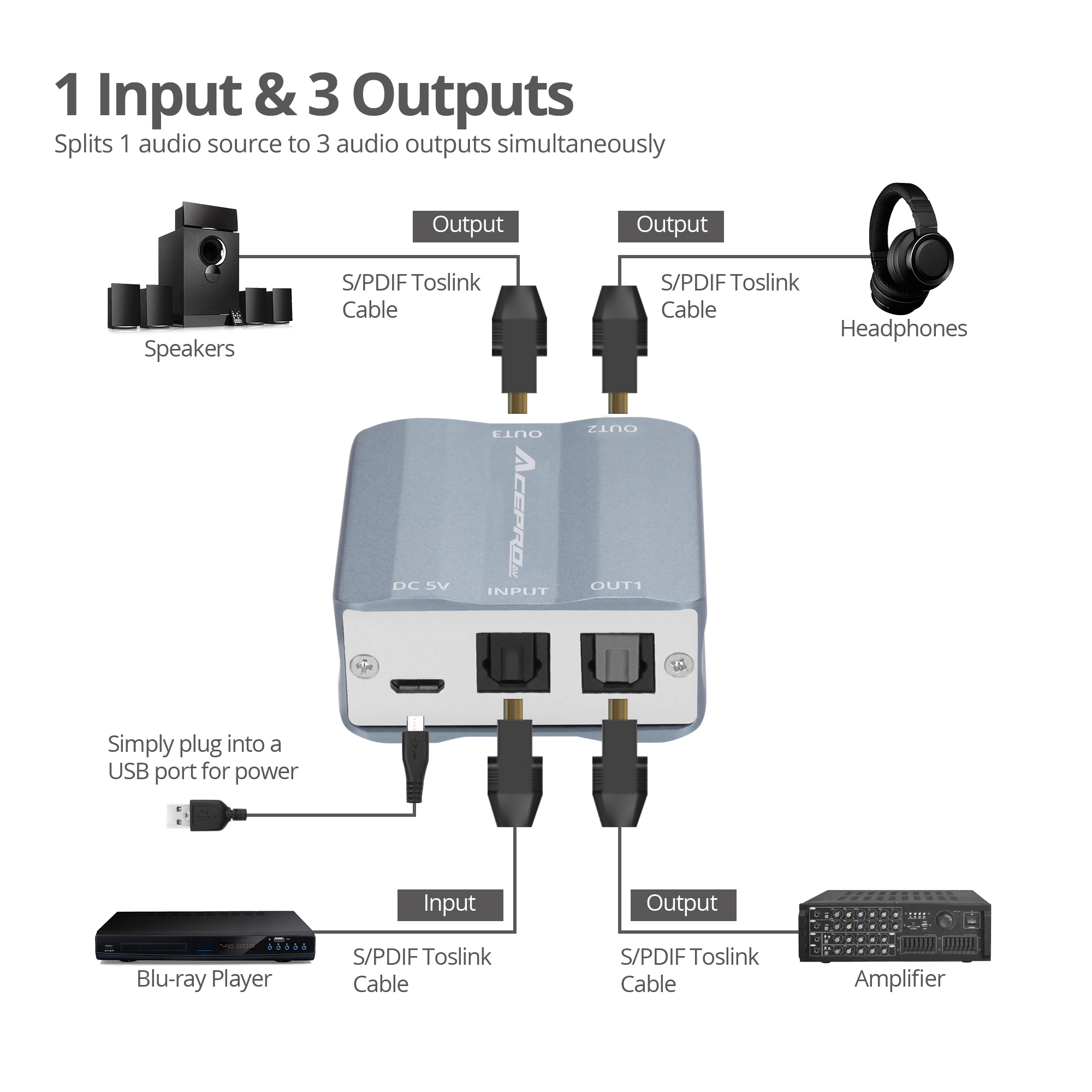

1x3 S/PDIF Toslink Splitter
Handy tool to split 1 Toslink S/PDIF digital input into 3 Toslink S/PDIF digital outputs

HIGH QUALITY SIGNAL
Built-in digital signal amplifier maintains signal integrity without signal loss

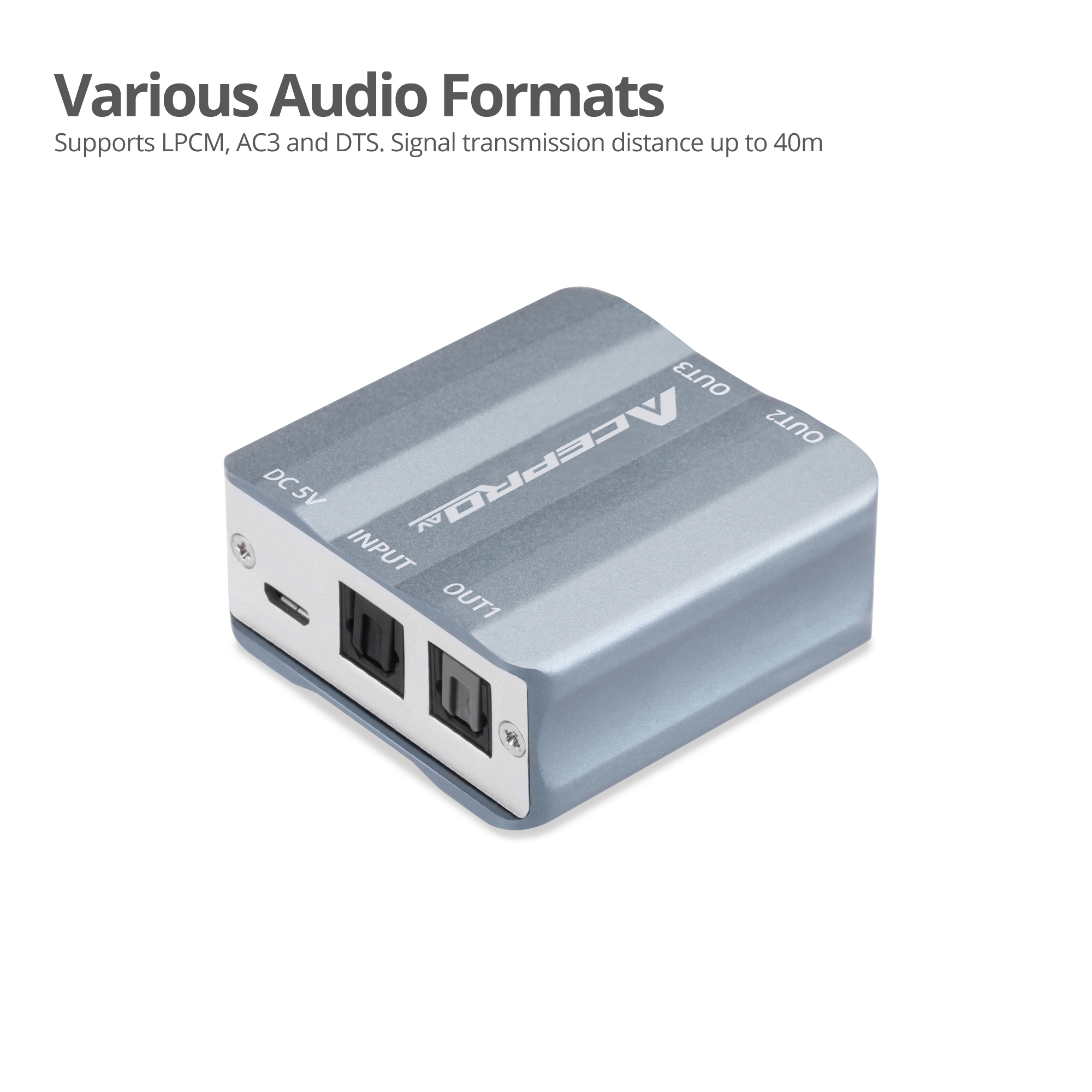

VARIOUS AUDIO FORMATS
Supports LPCM, AC3, DTS audio, 24-bit audio depth, with sample rate up to 192KHz

STURDY METAL ENCLOSURE
Provides durability and minimizes EMI/RF noise interference for long life and dependable performance

PLUG-N-PLAY
No software installation required

Specification

Audio sample rate: up to 192KHz


S/PDIF audio formats: LPCM, AC3 and DTS


Bit depth: up to 24bits


ESD protection: ±12kV Air / ±8kV Contact


Color: Black


Housing: Metal


Product

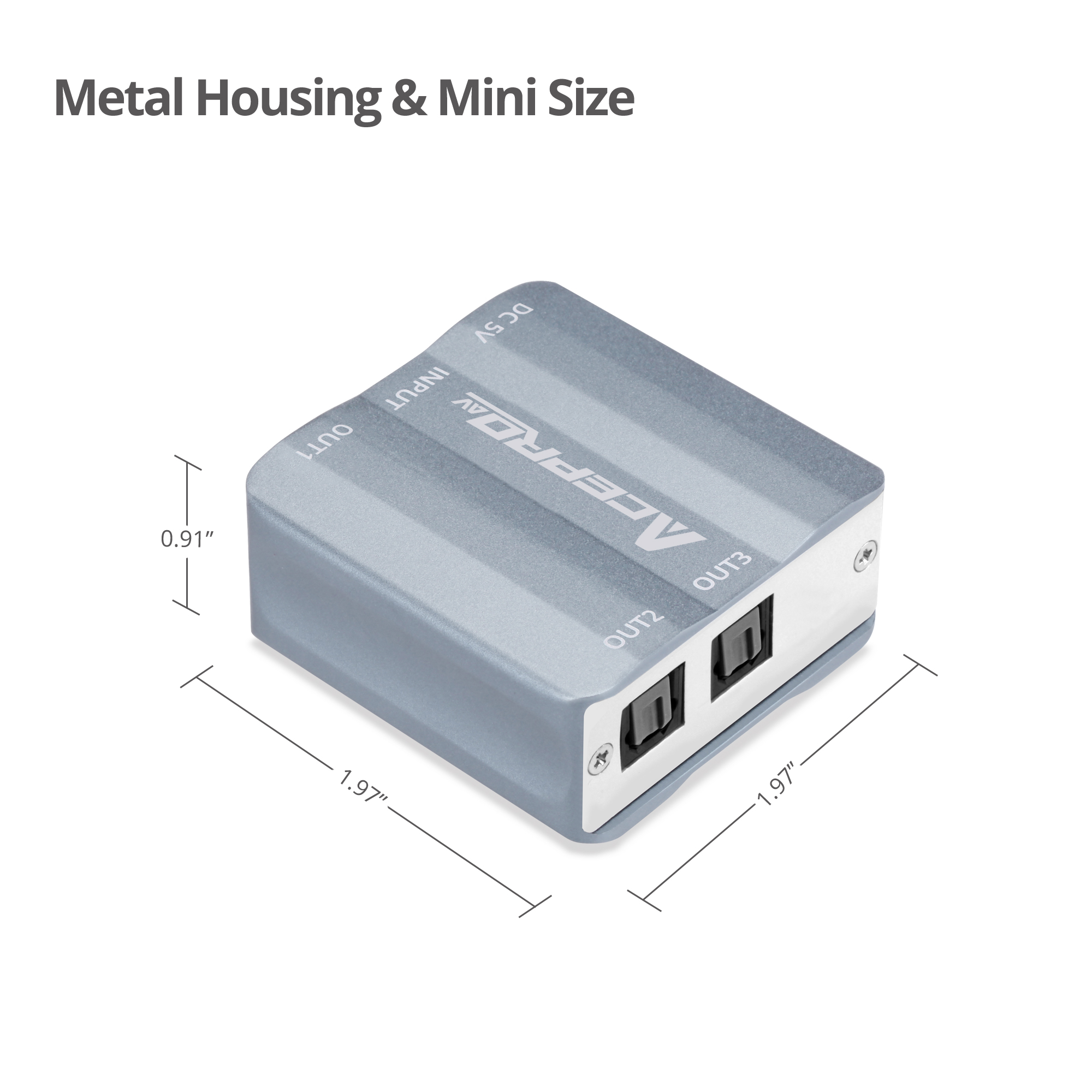

■ Dimensions: 1.98" (L) x 0.91" (H) x 1.97" (W)
■ Weight: lbs

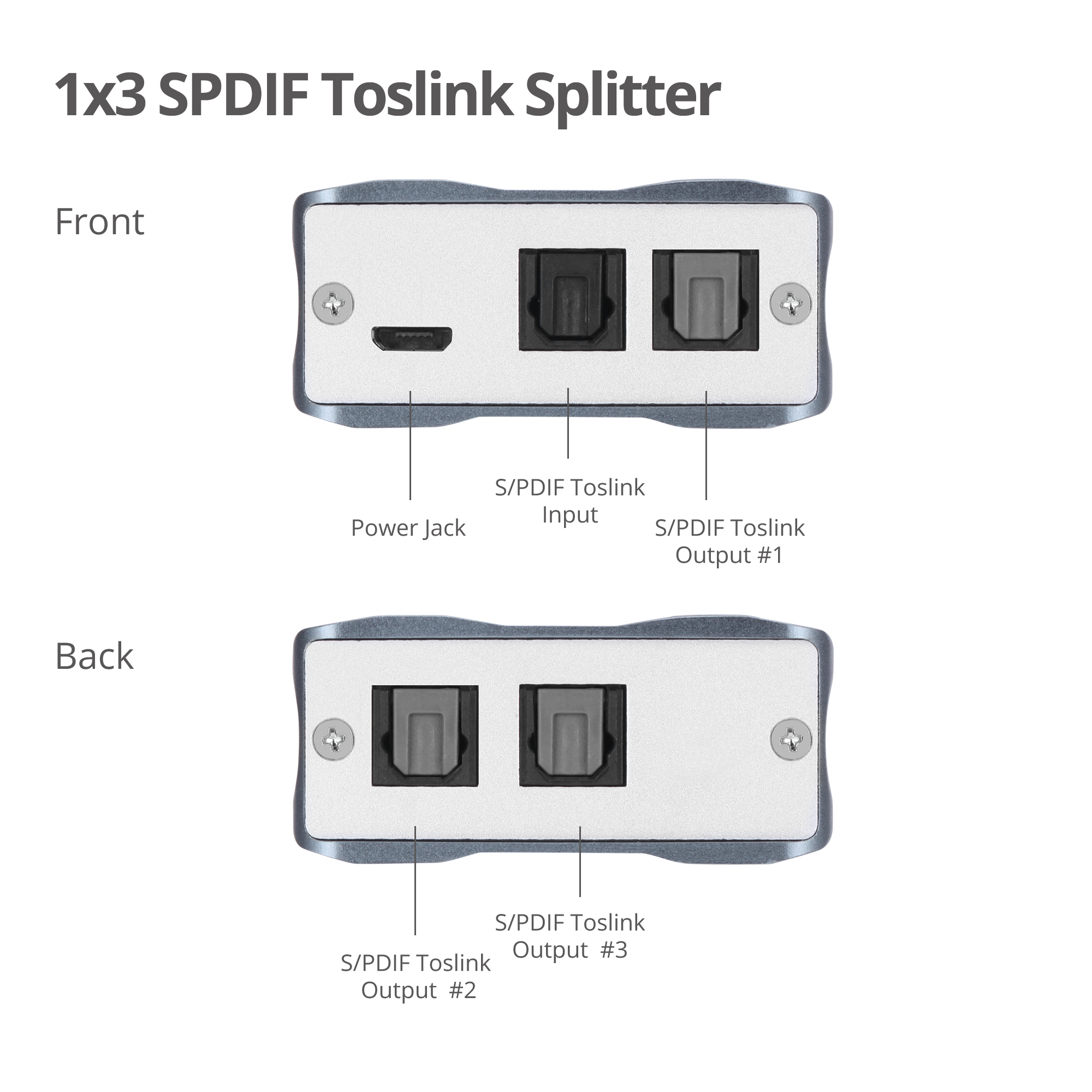

■ Connector:
1x Toslink, S/PDIF, Female, Input
3x Toslink, S/PDIF, Female, Output
1x 5-pin, Micro USB, Power Input


Power supply
■ Input: 100-240VAC, 50/60 Hz
■ Output: DC 5V/1A


UL Listed: /Level:VI


Environmental conditions:
■ Operating temperature: 32 to 104 degrees F
■ Storage temperature: 14 to 140 degrees F
■ Relative humidity: 20% to 90% RH (non-condensing)


TAA compliant


Certifications/Standards: FCC, CE, RoHS


Warranty: 1 year limited


Country of origin: Taiwan
