• AcePro-MS07-1
  • AceProAV 3-Port DisplayPort 1.4 MST Hub - DP to Mixed DP and HDMI Output

Easily connect up to 2 DisplayPort and 1 HDMI displays from a single DisplayPort 1.4 output

  • $0 $0

Highlights

  • Boost your productivity by connecting two DisplayPort and one HDMI displays to single DisplayPort output with Multi-Stream Transport (MST) technology
  • Provides multiple display modes for various applications such as Mirror mode* same content on each display, Extended mode with individual content on each display, and Panoramic Video Wall mode** which combines multiple monitors to use as one large display
  • Note: *Mirror mode using a NVIDIA Surround technology graphics adapter is limited to 2 displays. **Video Wall mode requires either a AMD Eyefinity, Intel, or NVIDIA Surround technology graphics adapter
  • Total Bandwidth 32.4Gbps (Max): Supports one UHD 8K (7680 x 4320)@30Hz display, two 4K@60Hz displays, or three 4K (3840x2160)@30Hz or less display. Other resolution combinations which are less than or equal to 4K@30Hz will work also. For example, three 2K, three 1080p, 4K+2K+1080p etc.
  •  *Note: The total combined bandwidth among all connected displays must NOT be exceeded the total bandwidth
  • Compatible with DisplayPort 1.4 with MST graphics cards with AMD Eyefinity, Intel Collage or NVIDIA Surround technology
  • Supports 4K HDR and HDCP 2.2
  • Reset button allows re-detection of all the displays if any of the displays are not detected
  • Plug-n-play, trouble-free set up without complicated hardware or driver installation
  • Premium aluminum housing with embedded woven braided DisplayPort cable decreases surrounding interference and provides optimal video quality

Notes:
1) Mirror mode using Windows Display Utility and NVIDIA Utility is limited to 2 displays
2) Video Wall mode (e.g., Panoramic) requires either an AMD Eyefinity, Intel, or NVIDIA Surround technology graphics adapter
3) Currently, most Intel HD Graphics cards only support up to 3 external monitors altogether
4) macOS currently does not support MST function and will only mirror the displays
5) Requires USB power source of at least 5V/600mA

Important information:
Adding additional displays to your system is simple with MST Hubs; however, they are mostly dependent on and tied to your Graphics card’s capability to operate properly. Make sure your system requirements are met before purchasing an MST Hub. Below are some key requirements for our MST Hubs. Please contact us if you’re not sure before making your purchase.

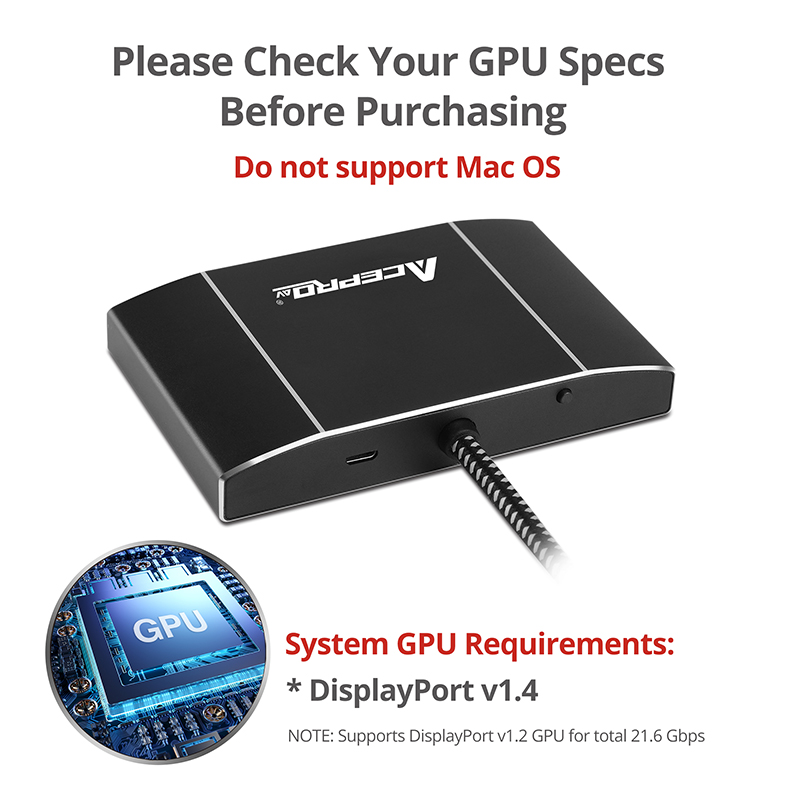

1) Make sure your DisplayPort or Mini DisplayPort is DP v1.4 or later. This is the most important criteria. If you’re unsure, check with the video card or system manufacturer.
2) macOS Does Not support MST function and will only mirror the displays.
3) Install the latest drivers for your video card. Go directly to the system/video card manufacturer or chipset owner, such as AMD, Nvidia or Intel, to find the latest driver. Driver update through Device Manager may not retrieve the latest driver available.
4) MST hubs cannot increase the number displays a video card supports. Regardless of the number of display connectors built into your video card, each video card has a limited number of displays it can support. From our experience at the current time, AMD and NVIDIA video cards support up to 4 displays, while Intel supports up to 3. If you’re unsure, check with the video card or system manufacturer. Note: AMD RX560 / RX570 / Radeon 7200 Series video cards only support up to 2 displays.
5) Refer to our bandwidth table to make sure additional displays can be accommodated. It’s important to note that if you use a 4K monitor to display in 1080p, there’s a possibility that the link still gets 4K bandwidth and reduces the overall bandwidth for the other displays.
6) To connect HDMI, DVI, VGA monitors to our DisplayPort/Mini DisplayPort to DisplayPort MST Hubs, use ACTIVE converters.

Specification

  • Chipset: VMM5320
  • Maximum resolution:
    • One screen 8K (7680 x 4320) @30Hz & 7680x4320@60Hz YUV 4:2:0 with DSC (Display Stream Compression)
    • Two screen 4K@60Hz / 5120x2880 @60Hz (DSC)
    • Three screen 4K@30Hz / 3840x2160 60Hz (DSC)
  • Compliant with DisplayPort 1.4 specifications
  • Display Modes: Mirror, Extend, Panoramic video wall *
  • *Note: AMD Eyefinity or NVIDIA Surround technology graphics adapter is required to support Panoramic Video Wall mode
  • Total Bandwidth 32.4Gbps*: Supports one UHD 8K (7680 x 4320)@30Hz display, two 4K@60Hz displays, one 4K@60Hz display with two 4K@30Hz displays, three 4K@30Hz displays. Other resolution combinations which are less than or equal to 4K@30Hz will work also. For example, three 2K, three 1080p, 4K+2K+1080p etc.  *Note: The total combined bandwidth among all connected displays must NOT be exceeded
  • Product:
    • Dimensions: 4.14" (L) x 0.67" (H) x 2.60" (W)
    • Weight: 0.28 lbs
    • Color: Black
    • Housing: aluminum
    • Connector:
      • 1x 20-pin, DisplayPort, Male, Input Output
      • 1x 5-pin, Micro USB, Female, Input (for power only)
      • 1x Reset button
  • Environmental conditions:
    • Operating temperature: 32 to 104 degrees F
    • Storage temperature: -4 to 158 degrees F
    • Relative humidity: 5% to 90% RH (non-condensing)
  • Certifications/Standards: FCC, CE, RoHS
  • Country of origin: China
