• AcePro-KV12-1
  • AceProAV 4-Port Full HD Quad-View HDMI KVM MultiView Processor

Control up to four computers using one keyboard, mouse, and 1080p display, with quad viewing, mouse roaming, 4-port USB 3.1 hub

  • $0 $0

Highlights

  • Allows you to control four Full HD HDMI computers via one set of keyboard, mouse, and display

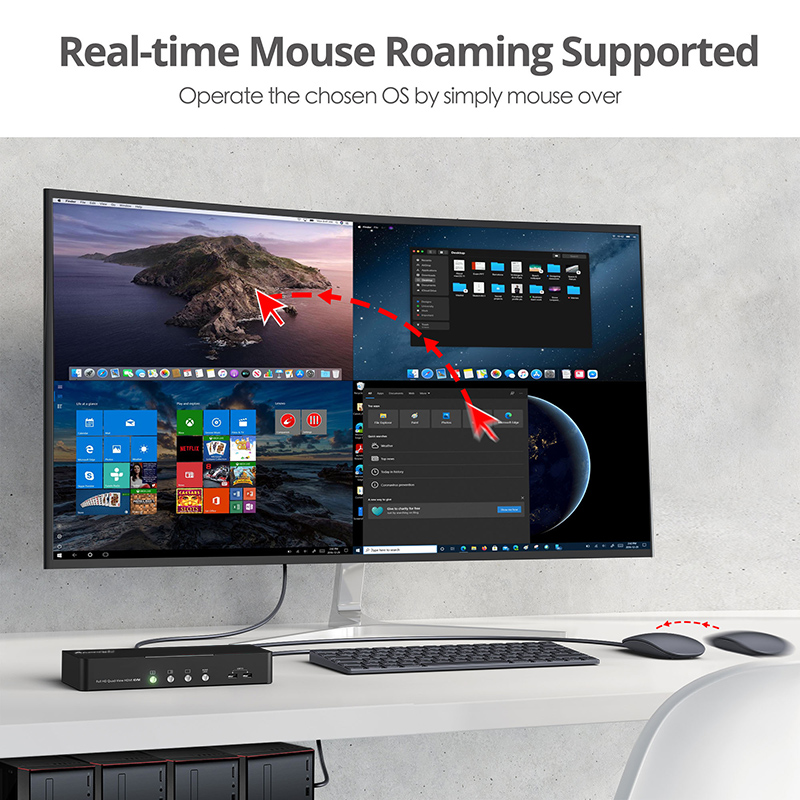

  • Advanced single-head HDMI KVM switch to offer Full HD 1080p at 60Hz and also support mouse roaming between four Windows PC, Mac, or laptop

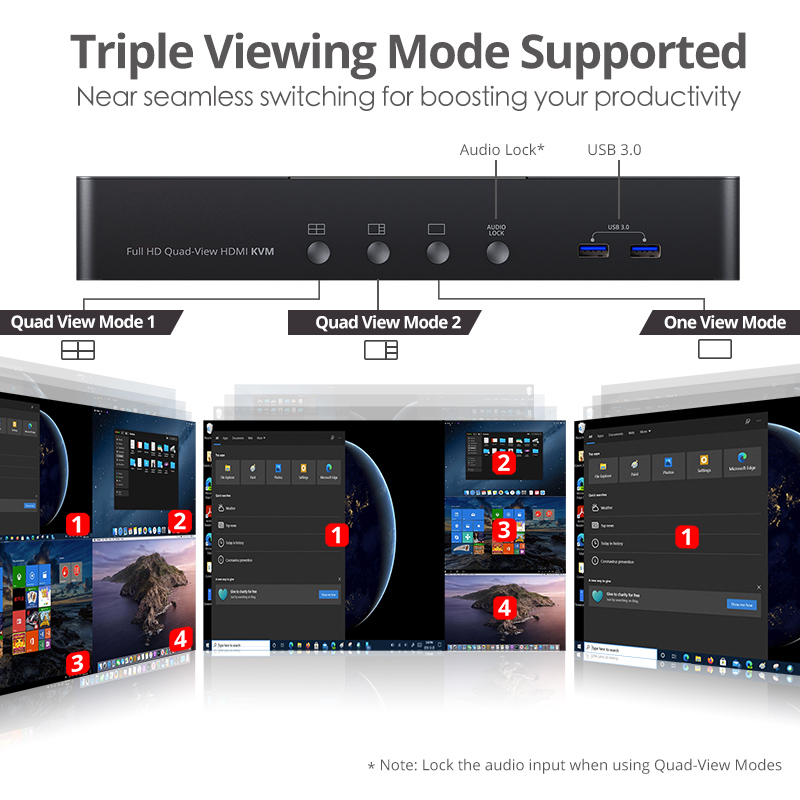

  • Supports 3 display modes: Single View Mode, Quad View Mode, Quad View Cycled Mode
  • Supports seamless switching in Single View Mode
  • Built-in USB 3.1 Gen 1 4-port hub shares up to 4 USB devices among the computers
  • Supports independent HID keyboard and mouse ports
  • Firmware upgradeable for support of new features and technology enhancements

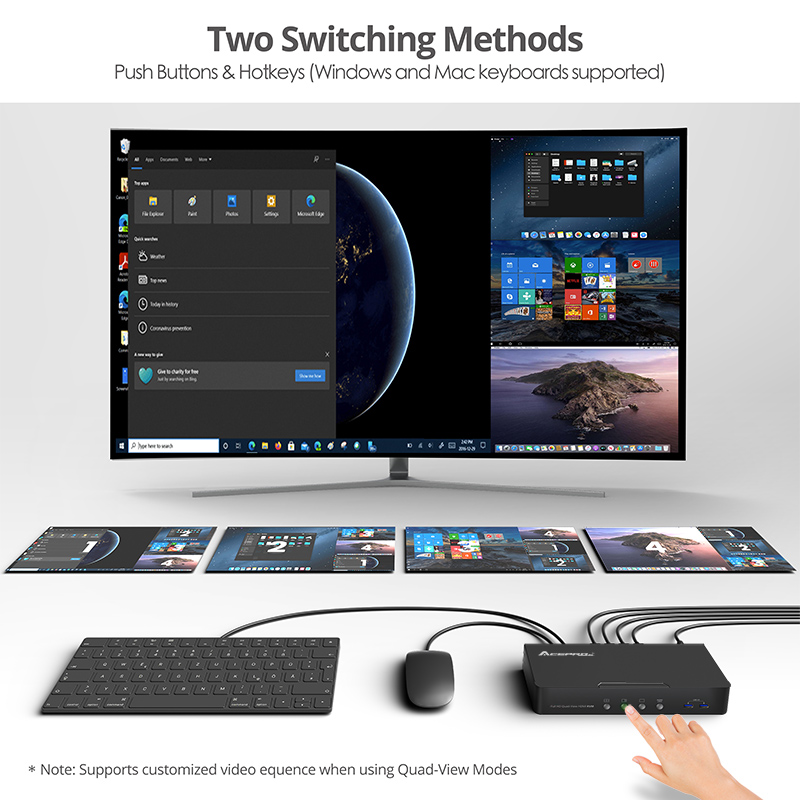

  • Keyboard hot-keys and front push button for convenient computer switching
  • Plug and Play installation, no driver installation needed

Specification

  • Compatible with HDMI 1.4, HDCP 1.4
  • Video resolution: 480i/480p/576i/576p/720p/1080i/1080p
  • Video bandwidth: Up to 6.75Gbps
  • USB 3.1 data transfer rate:
    • USB 2.0: Up to 480Mbps
    • USB 3.1: Up to 5Gbps
  • Audio support: Bypass
  • Display Modes: Single View Mode, Quad View Mode, Quad View Cycled Mode
  • Mounting: 1RU rack-mount with ears and Wall hanging holes
  • ESD protection:
    • Human body model — ±15kV [air-gap discharge]
    • Human body model —±8kV [contact discharge]
  • Product:
    • Dimensions: 11.10" (L) x 1.70" (H) x 4.39" (W)
    • Weight: 2.23lbs
    • Housing Color: Black
    • Housing material: Metal

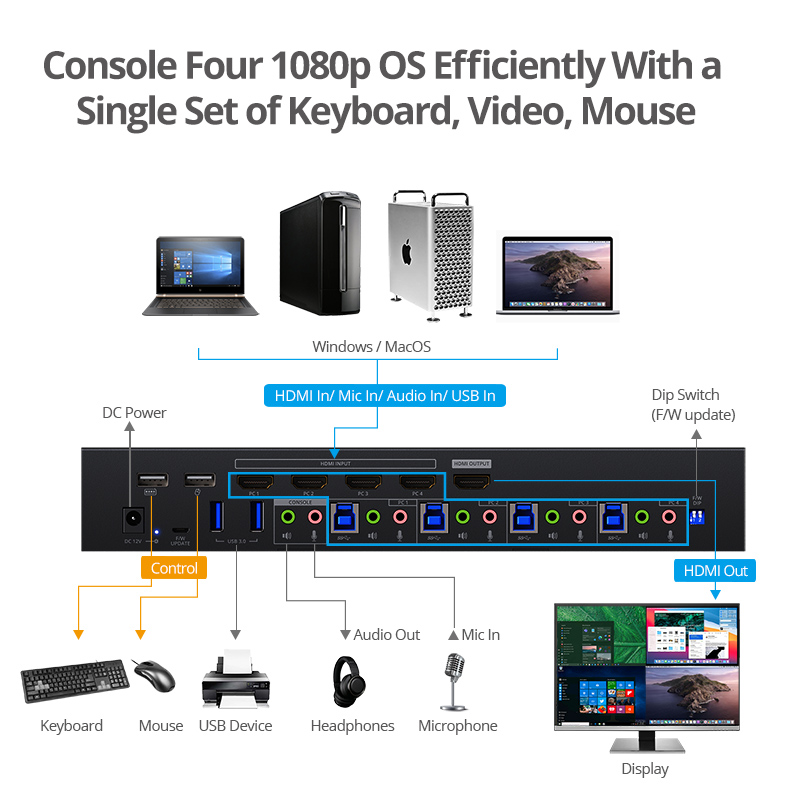

    • Connectors:
      • 4x 19-pin, HDMI Type-A, Female, Input
      • 4x 9-pin, USB 3.0 Type-B, USB Host device connection
      • 4x 3.5mm audio in, Female
      • 4x 3.5mm audio out, Female
      • 2x 4-pin, USB 2.0 Type-A, Dedicated keyboard and mouse connection
      • 1x 5-pin, Micro USB, Firmware upgrade port
      • 4x 9-pin, USB 3.1 Gen 1 Type-A ports
      • 1x 2-pin DIP Switch, Control switches
      • 4x Push button, Device swithing
      • 1x 19-pin, HDMI Type-A, Female, Output
      • 1x 3.5mm audio in, Female
      • 1x 3.5mm stereo out, Female
      • 1x Power Jack
  • Power Adapter:
    • Input: 100-240V AC / 50-60Hz
    • Output: DC 12V/2A
    • UL listed: E263376 / Level: VI
  • Environmental conditions:
    • Operating temperature: 32 to 104 degrees F
    • Storage temperature: -4 to 140 degrees F
    • Relative humidity: <85% RH (non-condensing)
  • Certifications/Standards: FCC, CE, RoHS
  • TAA compliant
  • Country of origin: Taiwan
