- new | AcePro-KV19-1
- 2x1 USB-C 4K Video KVM Switch
2x1 USB-C KVM Switch, allows you to control 2 USB-C 4K computers using one keyboard and mouse - HDMI 4K@60Hz, 18Gbps, HDCP 2.2, 7.1ch, USB 2.0, Switch Button, works with Apple, HP, Dell & Lenovo
Highlights
- Easily control 2 USB-C DP Alt mode computers/tablets and switch a 4K HDMI display/monitor with one set of keyboard & mouse, a sturdy design to switching computers, and save your workspace for increased efficiently

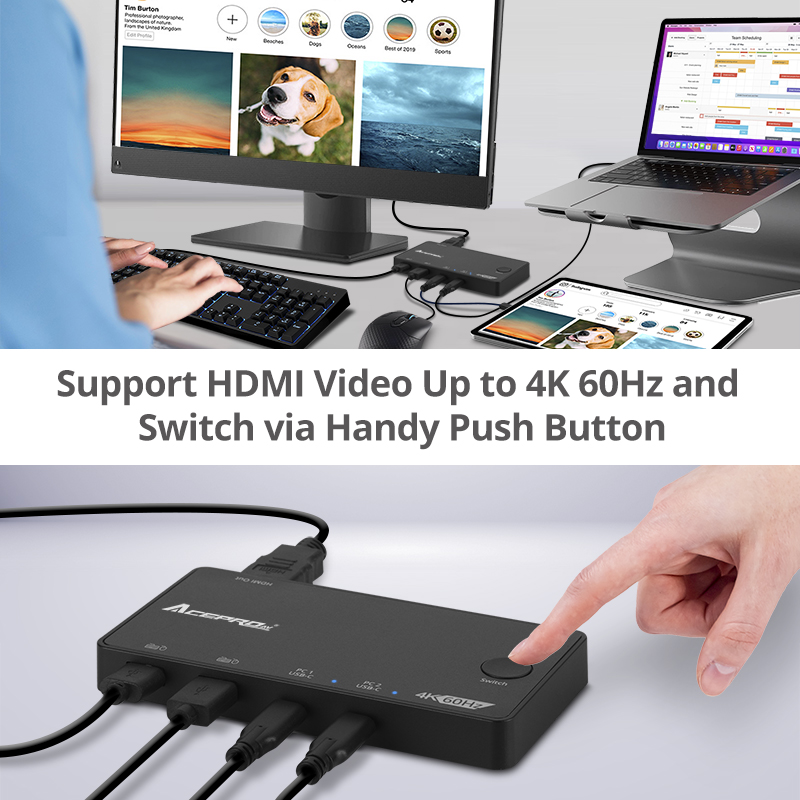

- Effortlessly Switch: Easily switching between computer/device via the top panel push button makes this 2x1 USB-C 4K Video KVM Switch user-friendly to operate
- 4K Ultra HD Resolution: This allows you to connect a single UHD 4K (3840x2160) @60Hz YUV 4:4:4 8-bit and YUV 4:2:0 10-bit through an HDMI port to display the crystal-clear video quality. 3D and deep color are supported
- High Performance: Offers a true 18Gbps video bandwidth and supports 7.1-ch. surround sound from the HDMI port

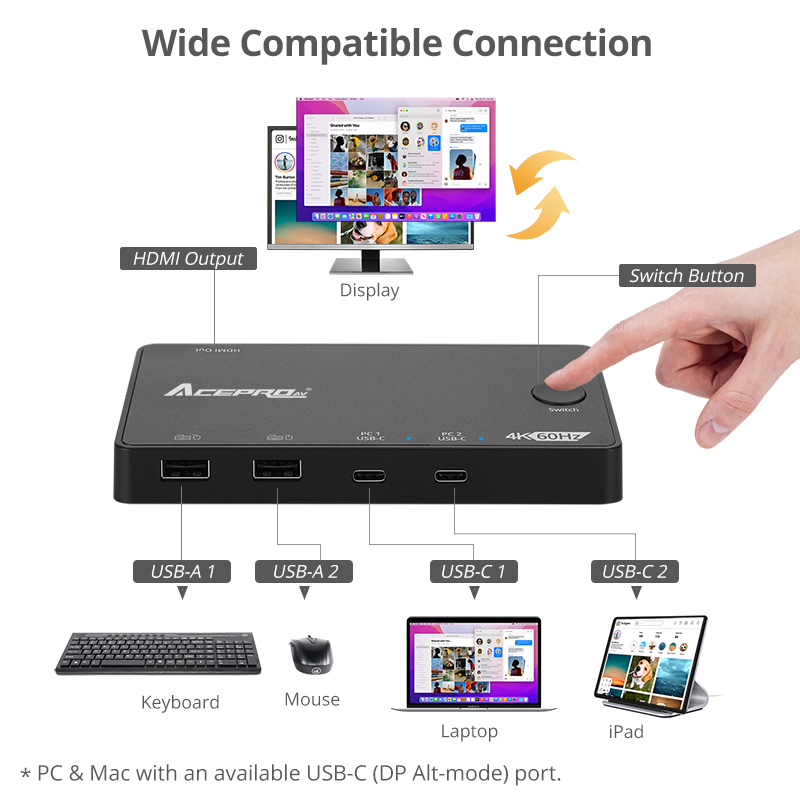

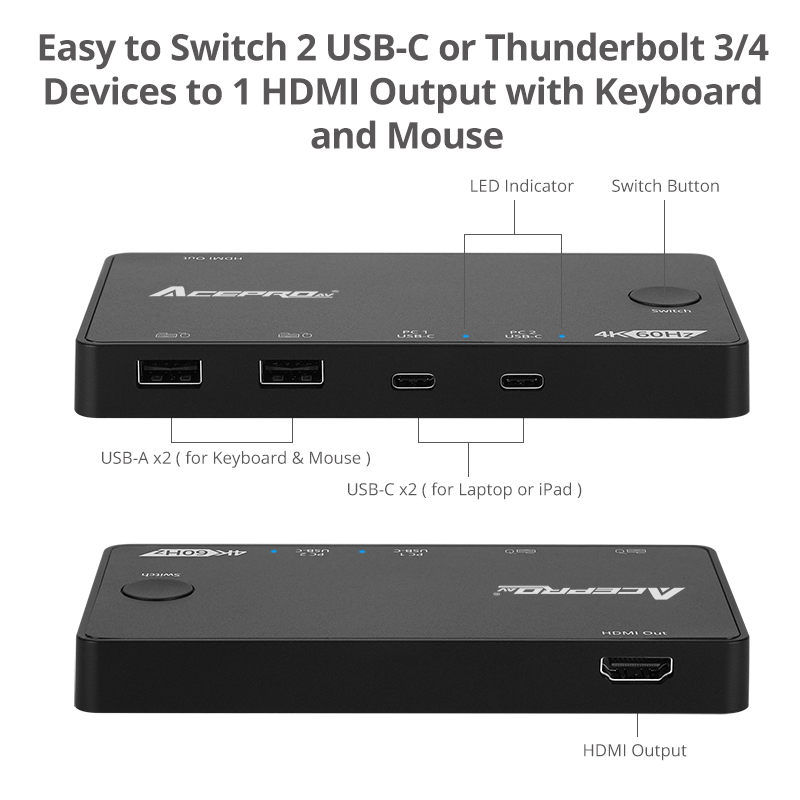

- Multiple Connectivity Port: Comes with two USB-C or Thunderbolt 3/4 input ports, one HDMI video output port, two USB 2.0 for keyboard & mouse connection, one switch button
- USB Data Transfer: Delivers two High-Speed USB 2.0 Type-A ports up to 480Mbps data transfer rate for independent HID keyboard and mouse
- Maximum Compatibility: Compatible with Windows® 11 / 10 and macOS® 12.x to 10.13. Supports Plug-n-play, no driver installation required
- ABS Housing Design: Smooth ABS housing with heat dissipation design for reliable performance and increase efficiency
Specification
| Software | |
|---|---|
| OS Compatibility | Windows® 11, mac OS ® 12.x or new |
| Video | |
| HDMI | Resolution: up to 4K (3840x2160)@60Hz 4:4:4 8-bit, 4K (3840x2160)@60Hz 4:2:0 10-bit, HDCP 2.2 video bandwidth: 18Gbps |
| USB data transfer rate | |
| USB 2.0 | 2x Type-A, up to 480Mbps |
| Audio | |
| 7.1 channel surround sound from HDMI port | |
| Environmental conditions | |
| Operating temperature | 41 to 104 degrees F |
| Storage temperature | -20 to 122 degrees F |
| Relative humidity: | 20% to 80% RH (non-condensing) |
| Product Info | |

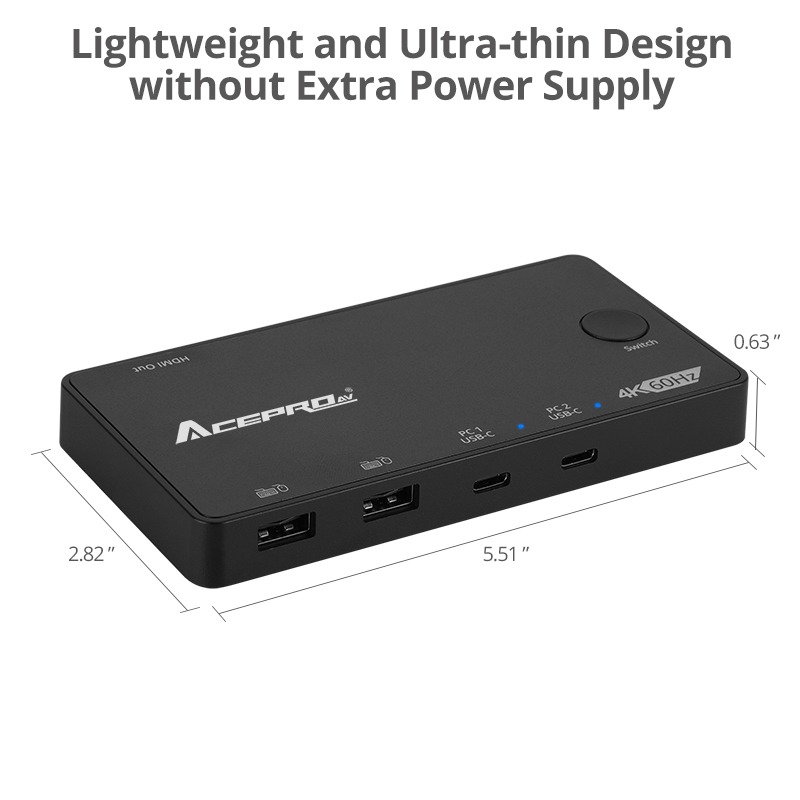

| Dimensions | 5.51” (L) x 0.63” (H) x 2.80” (W) |
| Weight | 0.51 lbs |
| Color | Black |
| Housing material | Plastic |
| Unit Package | |
| Dimensions | 6.89” (L) x 3.35” (H) x4.92” (W) |
| Weight | 1.00 lbs |
| Certifications/Standards | |
| FCC, CE, RoHS, REACH | |
| Country of origin: China | |
