• AVLAB-CB44-1

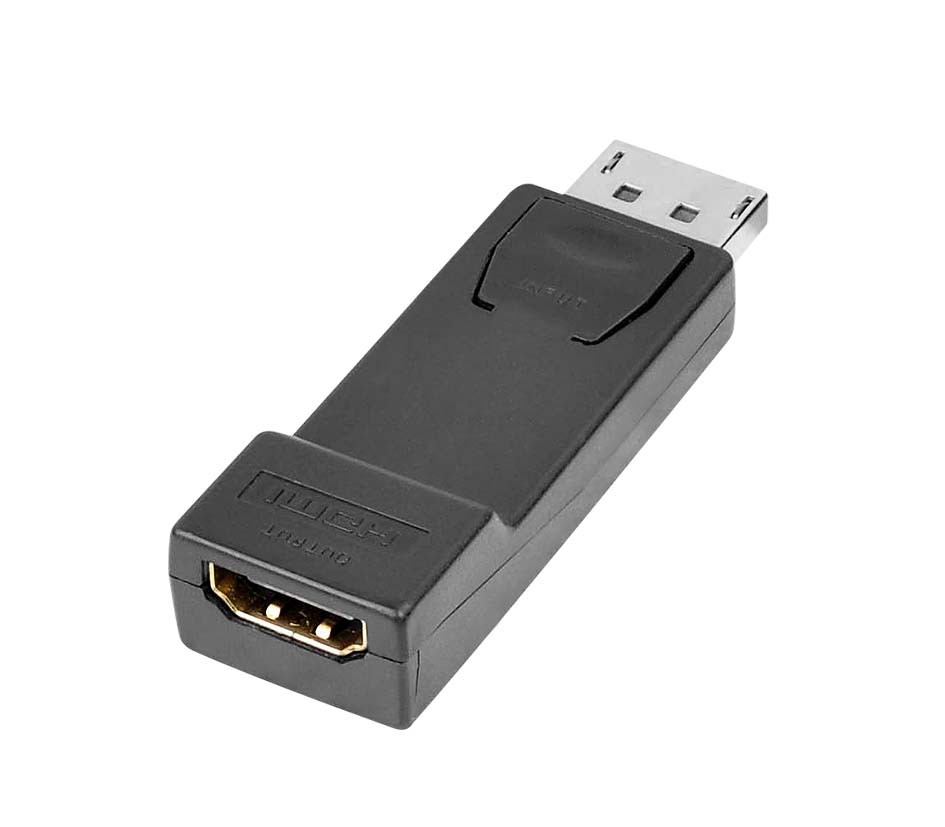

  • AVLAB DisplayPort (M) to HDMI (F) Adapter, 1920x1080

■ "Dongle" style DisplayPort to HDMI converter
■ Designed for connecting the latest DisplayPort equipped computer systems to HDMI equipped monitors and televisions, providing optimal video quality
■ Compliant with DisplayPort 1.1 (both 1.62 and 2.7 Gbps) specifications
■ Display modes:
PC VGA, SVGA, XGA, SXGA, and UXGA display modes (up to 1900 x 1200)
HDTV: 480i, 576i, 480p, 576p, 1080i and 1080p
■ Supports digital audio (system's DisplayPort must support audio)
■ Supports HDCP (High-bandwidth Digital Content Protection) on HDCP compliant HDMI displays
■ Latching DisplayPort connector to prevent accidental disconnection
■ Video bandwidth: Up to 2.25 Gbps

  • $0 $0

Highlights

"Dongle" style DisplayPort to HDMI converter

Designed for connecting
the latest DisplayPort equipped computer systems to HDMI equipped monitors and televisions, providing optimal video quality

Compliant with DisplayPort 1.1 (both 1.62 and 2.7 Gbps) specifications

Display modes:
PC VGA, SVGA, XGA, SXGA, and UXGA display modes (up to 1900 x 1200)
HDTV: 480i, 576i, 480p, 576p, 1080i and 1080p

Supports digital audio
(system's DisplayPort must support audio)

Supports HDCP
High-bandwidth Digital Content Protection on HDCP compliant HDMI displays

Latching DisplayPort connector
to prevent accidental disconnection

Video bandwidth
Up to 2.25 Gbps

Package Contents
DisplayPort (M) to HDMI (F) Adapter

Specification

Chip: PS8121E



Connectors:
■ Latching 20-Pin DisplayPort, Male, Golden-plated
■ 19-pin HDMI, Female, Golden-Plated



Dimensions: 2.1" (L) x 0.83" (W) x 0.39" (H)



Product weight: 0.02 lbs



Color: Black



LED indication



Environmental conditions:
■ Operating temperature: 32 to 140 degrees F
■ Storage temperature: 14 to 158 degrees F
■ Humidity: < 85% non-condensing



Certifications/Standards: FCC, CE, RoHS



Warranty: Lifetime limited



Country of origin: China



Download

FAQ

  • Active or passive converter and what is the difference?
  • A passive video signal converter changes the type of connection that is being used but does not change the signal that passes through the converter. Because the video signal is not modified, passive converters tend to be smaller, simpler, and less expensive than active video signal converters. Examples of passive converters include DVI-I to VGA, HDMI to DVI, and DisplayPort to Mini-DisplayPort converters.

    An active video signal converter modifies both the type of connection that is being used and the signal that passes through the converter. Because this type of conversion can be complex, active converters tend to be larger than passive video signal converters and sometimes require additional power. Examples of active converters include DVI-D to VGA, HDMI to DisplayPort, and VGA to HDMI converters.
  • My DisplayPort display is not working when I try to output 4K at 30Hz with this device. How do I resolve this issue?
  • To output 4K to a DisplayPort display at 30Hz, your monitor must support the resolution and refresh rate. If your monitor also supports 4K at 60Hz (DP 1.2 or higher), you may also need to set the monitor to work at 30Hz.

    To resolve this issue, use the buttons on your monitor to change the DisplayPort settings to DP1.1. For more information about how to change your monitor settings, refer to the website of the manufacturer of your monitor.
  • Does this device require me to install drivers. Or perform any other setup tasks?
  • This cable/adapter is plug and play. It does not use any drivers, and does not require any setup tasks other than plugging in the source (for example, a computer) and the destination (for example, a monitor).
